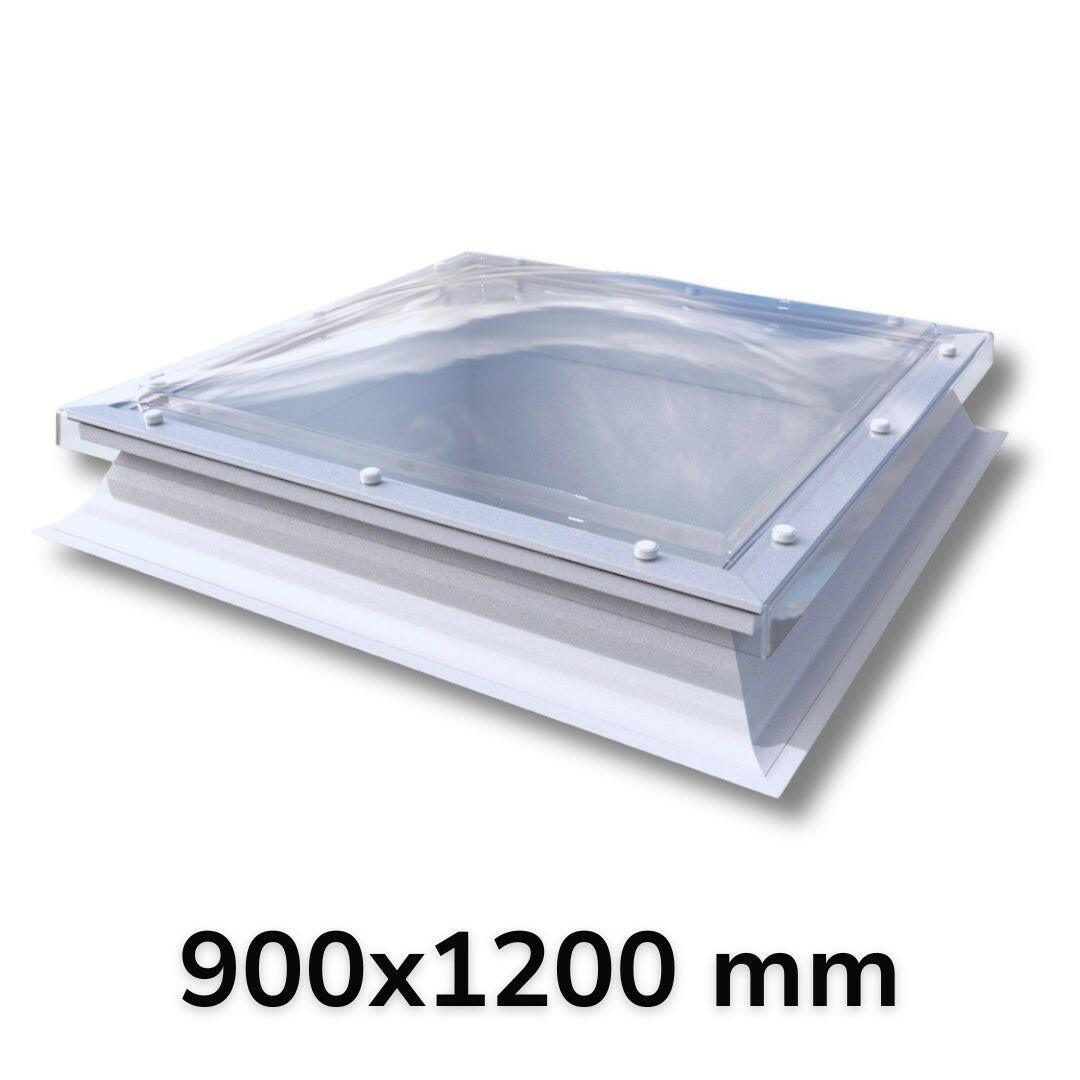

900 x 1200 mm Polycarbonate Fixed Dome Rooflight by Mardome Trade
Description
Description
The Fixed Dome Rooflight by Mardome Trade is a sleek, contemporary solution designed for optimal use of natural light, enhancing the aesthetics of any flat roof project. With its aerodynamic low-profile dome, this rooflight not only improves the clarity of light but also blends seamlessly with both new build and refurbishment environments, providing an unobtrusive external appearance and a clean interior finish.
Engineered for quick and easy installation, Mardome Trade is perfect for a wide range of applications, including homes, schools, commercial buildings, and leisure facilities. The Mardome Trade Rooflight is available in various sizes and configurations to meet diverse project specifications and budgets, with optional extras to further customise its performance.
Key Benefits:
- Sleek, modern design inside and out
- Aerodynamic low-rise glazing unit for enhanced aesthetics
- Wide range of sizes and features for flexibility
- Class B non-fragile certification when installed to guidelines (ACR[M]001)
- 10-year warranty and BBA approval for peace of mind
Innovative Features:
- Thermally efficient multiwall PVC kerb with a triple-wall structure
- Steep kerb walls for maximum glazing area, increasing natural light
- Range of ventilation and light transmission options
- Constant separation of glazing skins across the full dome to minimise condensation risk
Whether it's for residential, public sector, or commercial applications, the Fixed Dome Rooflight by Mardome Trade is a stylish and practical choice, offering superior long-term performance and a range of customisable options to suit any project.
Specifications
Specifications
Outer Dome Material:
- Made from 3mm impact-resistant Marlon FSX polycarbonate sheet
- UV protective coating applied to both sides
Inner Dome Material:
- Made from 2mm impact-resistant Marlon FS polycarbonate sheeting
- Available in double, triple, or quad skin options
Upstand Options:

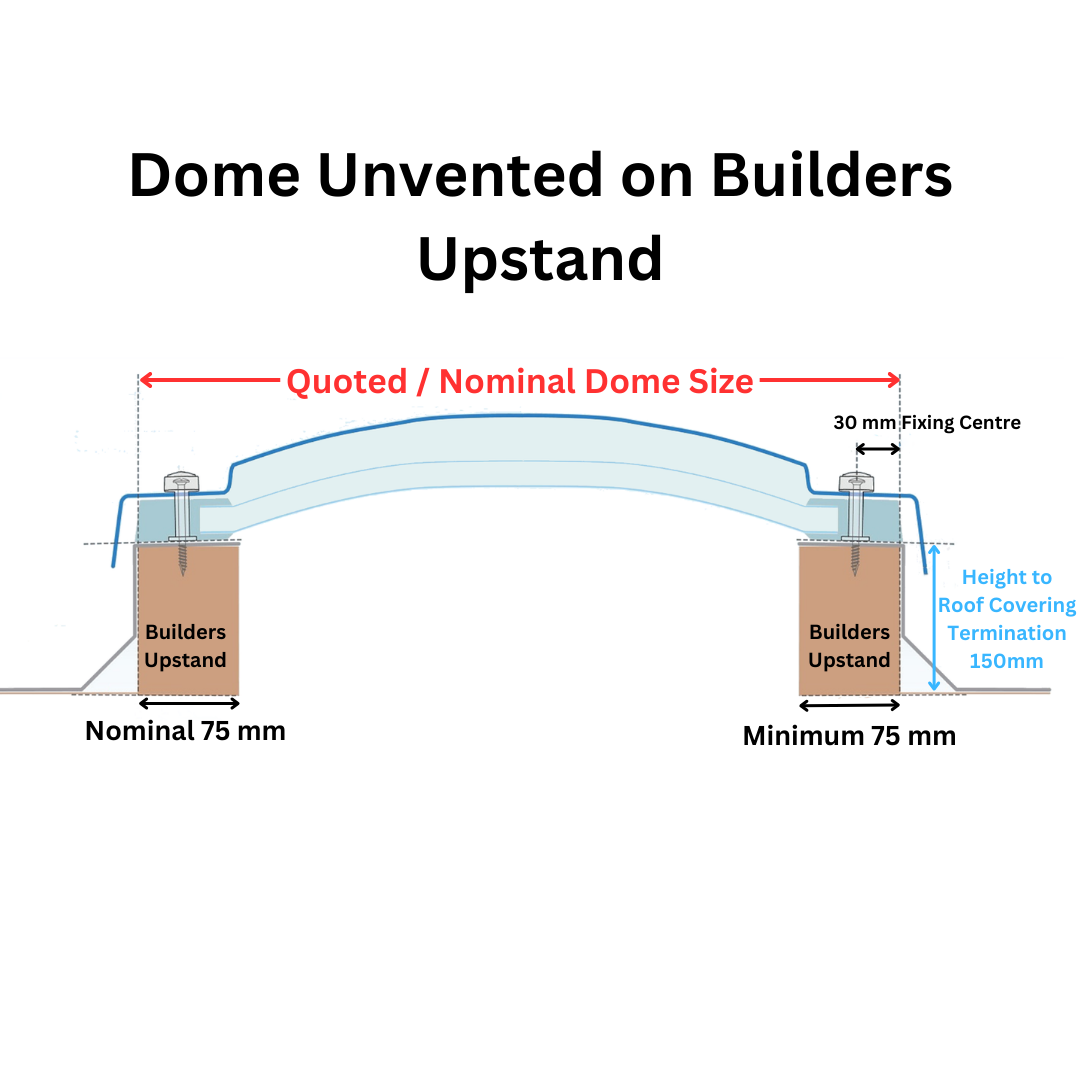

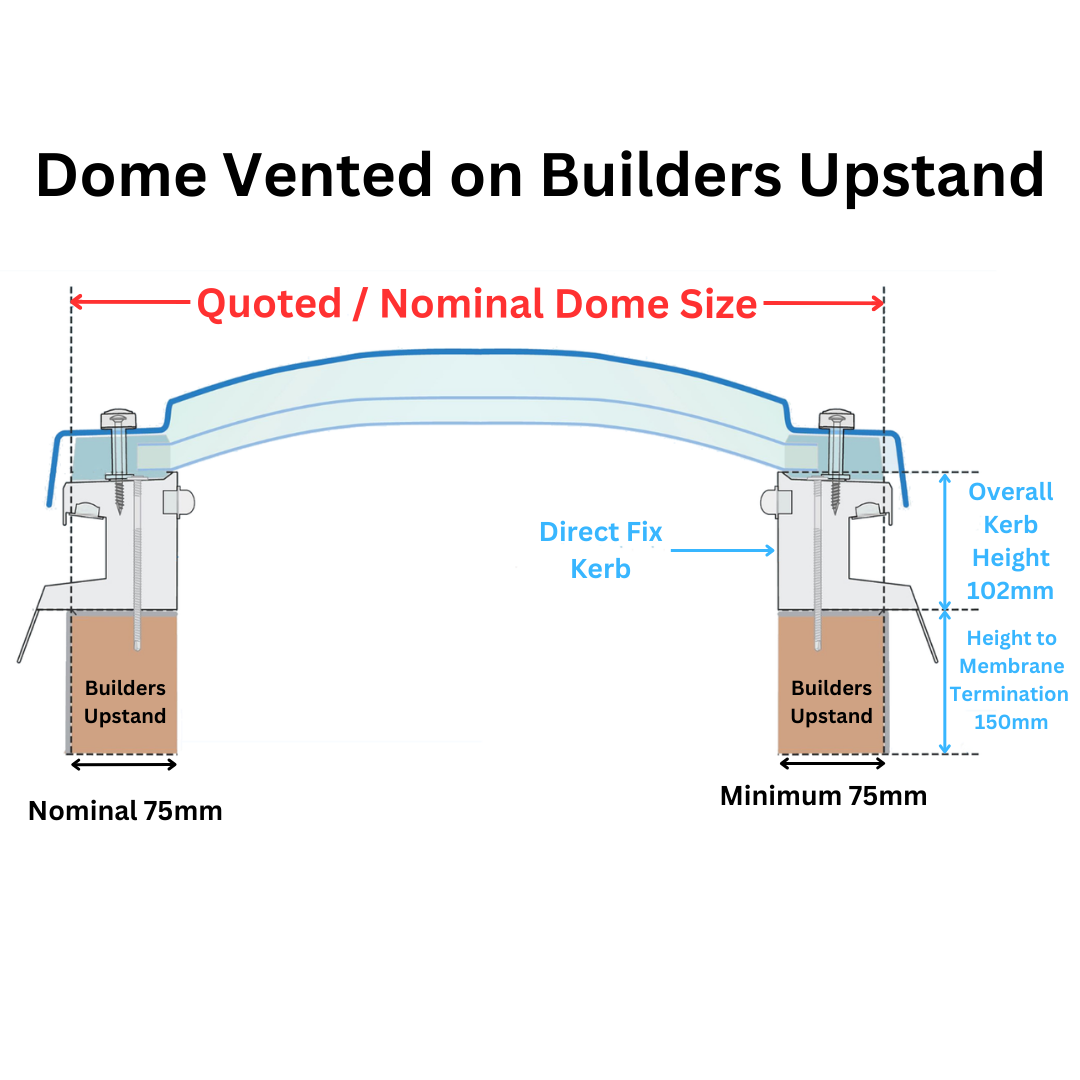

- Can be installed on existing builder’s upstand

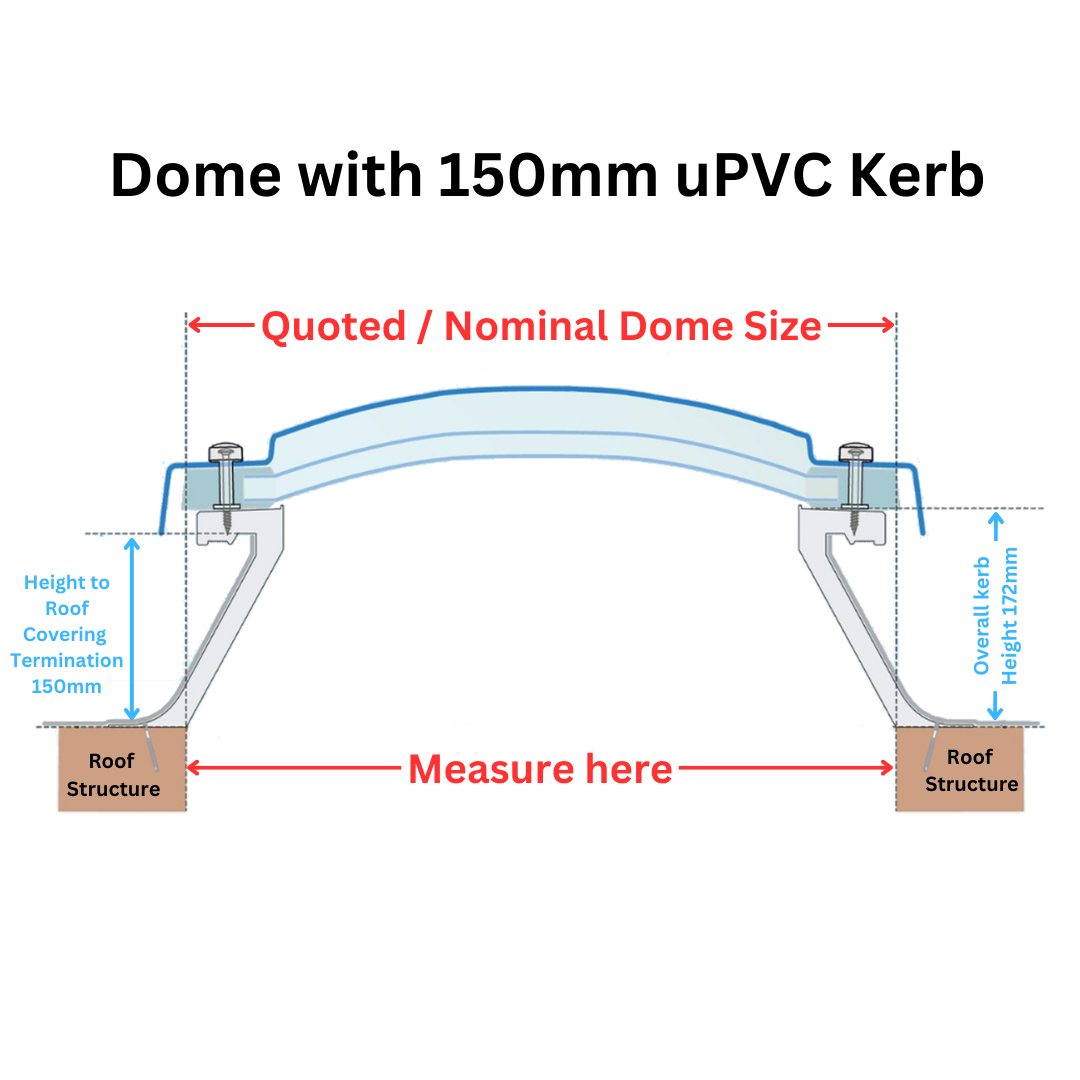

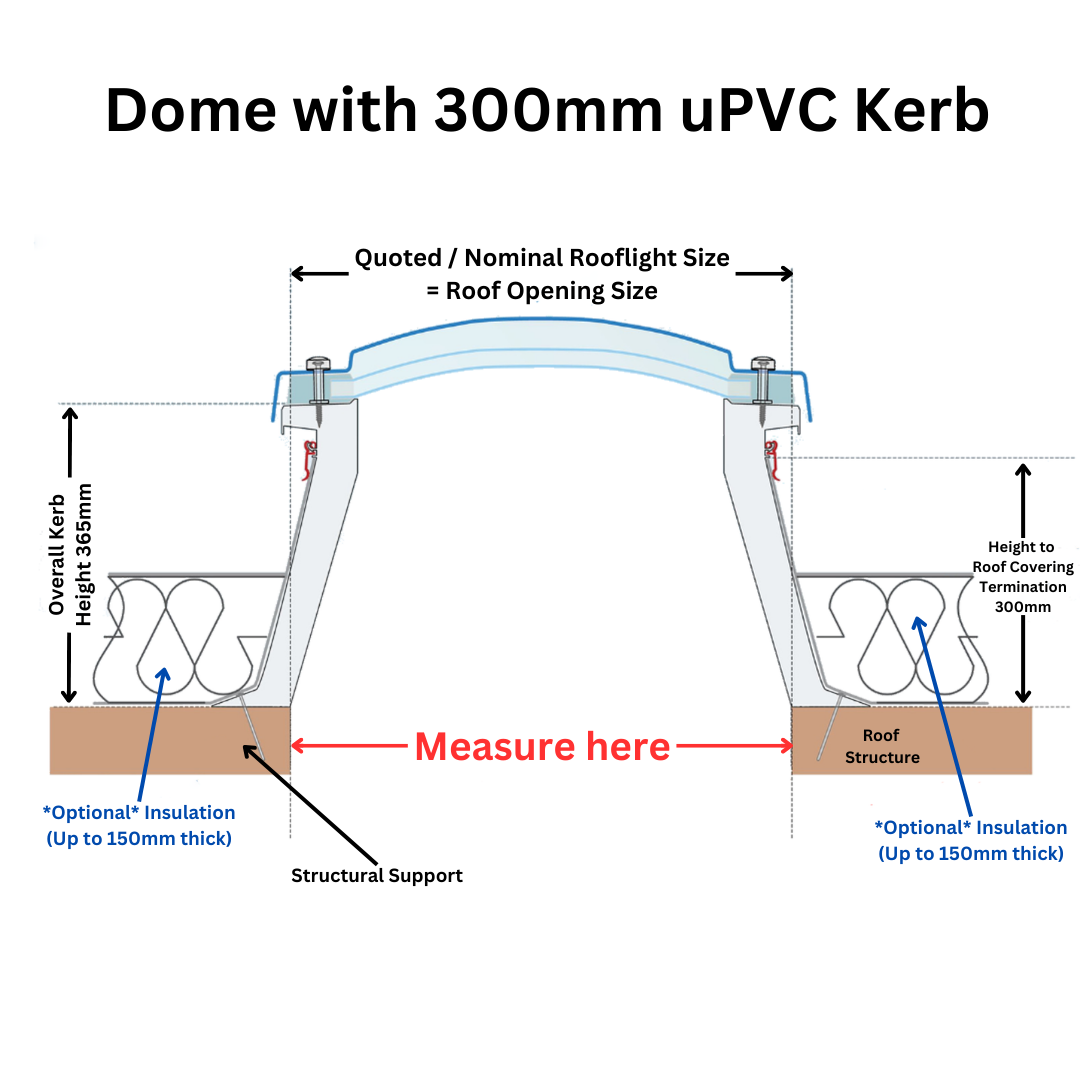

- 150mm and 300mm uPVC kerb options
- Tapered kerb foot for easy installation (no timber fillets required)
- Suitable for flat roof applications (0-15 degree pitch)
Ventilation Options:
Manual Hit-and-Miss Trickle Ventilation:
- Manually controlled
- Provides 8400mm² equivalent area ventilation
Automatic Humidity-Controlled Trickle Ventilation:
- Sensor-controlled, opens/closes based on humidity levels
- Provides 7822mm² equivalent area ventilation
Glazing Tint Options and Performance:
Clear:
- High visibility and maximum light transmission
- Light Transmission: 85% (Double Skin), 78% (Triple Skin), 72% (Quad Skin)
- Shading Coefficient: 0.84 (Double Skin), 0.76 (Triple Skin), 0.70 (Quad Skin)
- Transmittance (G-Value): 0.73 (Double Skin), 0.66 (Triple Skin), 0.61 (Quad Skin)
Opal:
- Diffused light with solar control, reduces glare and provides privacy
- Light Transmission: 35% (Double Skin), 32% (Triple Skin), 30% (Quad Skin)
- Shading Coefficient: 0.38 (Double Skin), 0.34 (Triple Skin), 0.32 (Quad Skin)
- Transmittance (G-Value): 0.33 (Double Skin), 0.30 (Triple Skin), 0.28 (Quad Skin)
Patterned:
- Offers privacy while allowing high light transmission and diffused daylight
- Light Transmission: 78% (Double Skin), 72% (Triple Skin), 66% (Quad Skin)
Applications:
- Ideal for homes, schools, public buildings, commercial spaces, and sports facilities.
Safety and Certification
Safety and Certification
Concealed Fixings for Security:
The Dome Rooflights by Mardome Trade are designed with concealed fixings, secured inside protective security caps, making unauthorised access or removal extremely difficult. This added layer of security enhances the overall safety of the rooflight.
Impact Resistance:
Manufactured from polycarbonate, Mardome Trade Rooflights offer excellent resistance to impact, making breakage very difficult. This ensures long-lasting durability and improved safety in a variety of environments.
Non-Fragility Certification:
Mardome Trade Rooflights achieve Class B non-fragility in accordance with ACR[M]001 standards when installed following the installation guides. It is important to note that foot traffic on rooflights should be avoided, as impacts such as foot traffic or falling objects may cause damage requiring rooflight replacement.
BBA Certified:
Mardome Trade Rooflights are BBA certified, ensuring they meet the highest standards of performance, safety, and durability.
T&C's & Warranty
T&C's & Warranty
Dome Rooflights by Mardome Trade are designed to provide long-lasting performance in normal industrial conditions. They are expected to remain fit for purpose for 20 years, ensuring they do not become perforated, lose significant structural integrity, or distort to the extent of losing weather-tightness.
Warranty Coverage:
10-Year Warranty: Dome Rooflights by Mardome Trade come with a 10-year guarantee covering the following:
- Protection against perforation, distortion, and loss of weather-tightness.
- The polycarbonate material is guaranteed against loss of light transmission, discolouration, or loss of impact strength for 10 years.
Electrical Actuators (where present): Where fitted, electrical actuators are covered for 1 year. These actuators are designed to have a minimum life cycle of 10,000 operations.
Insulated Glass (where present): For rooflights that include insulated glass, the glass is covered for a period of 5 years, ensuring long-term performance.
This warranty provides peace of mind, ensuring Mardome Trade Rooflights maintain their performance and durability for years to come.
If you find any damage to the dome upon delivery, please contact us right away. To be eligible for a return or replacement, it is important that any damage is reported within 12 hours of delivery. Promptly informing us of any issues ensures we can resolve them quickly and efficiently.
Delivery and Shipping
Delivery and Shipping
ECONOMY NATIONWIDE SHIPPING: 2-3 Working Days
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Brighten Your Space with Dome Rooflights by Mardome Trade
The Mardome Trade Dome Rooflight offers a sleek, contemporary design, perfect for maximising natural light on flat roofs. Ideal for new builds or refurbishments, it’s easy to install and suits a range of budgets.
Key Features:
- Available in low-rise dome or pyramid shapes
- Three tint options: Clear, Opal, and Patterned
- Vented options available: Manual or automatic trickle vents
- Large daylight area with a low-profile, modern appearance
- 10-year warranty for peace of mind
- Manufactured in the UK
Choose Dome Rooflights by Mardome Trade for a stylish, functional addition to your flat roof project.
Three Tint Options for Every Need:
- Clear Tint: Delivers the highest visibility. This option is perfect for spaces that require maximum natural light and clear views through the dome, creating bright, open environments. With 85% light transmission in double skin, 78% in triple skin, and 72% in quad skin.
- Opal Tint: Provides a balance of diffused light and solar control. It reduces glare and heat, making it ideal for areas needing softer lighting and privacy, like offices or living spaces. With 35% light transmission in double skin, 32% in triple skin, and 30% in quad skin.
- Patterned (Textured) Tint: Designed for maximum privacy. This tint diffuses daylight, making it perfect for private spaces, without sacrificing natural light. With 78% light transmission in double skin, 72% in triple skin, and 66% in quad skin.
These tint options give you flexibility to meet both lighting and privacy needs for any flat roof project.
Ventilation Options
Mardome Trade Dome Rooflights offer practical ventilation options to reduce humidity and prevent condensation, perfect for high-moisture areas like kitchens and bathrooms.
- Manual Trickle Vents: Provides 8400mm² of ventilation, allowing you to manually control airflow for steady ventilation.
- Automatic Humidity-Controlled Vents: Automatically adjusts based on room humidity, offering 7822mm² of ventilation for efficient condensation control.
These options ensure a well-ventilated, comfortable environment while maximising the natural light benefits of Mardome Trade Rooflights.
