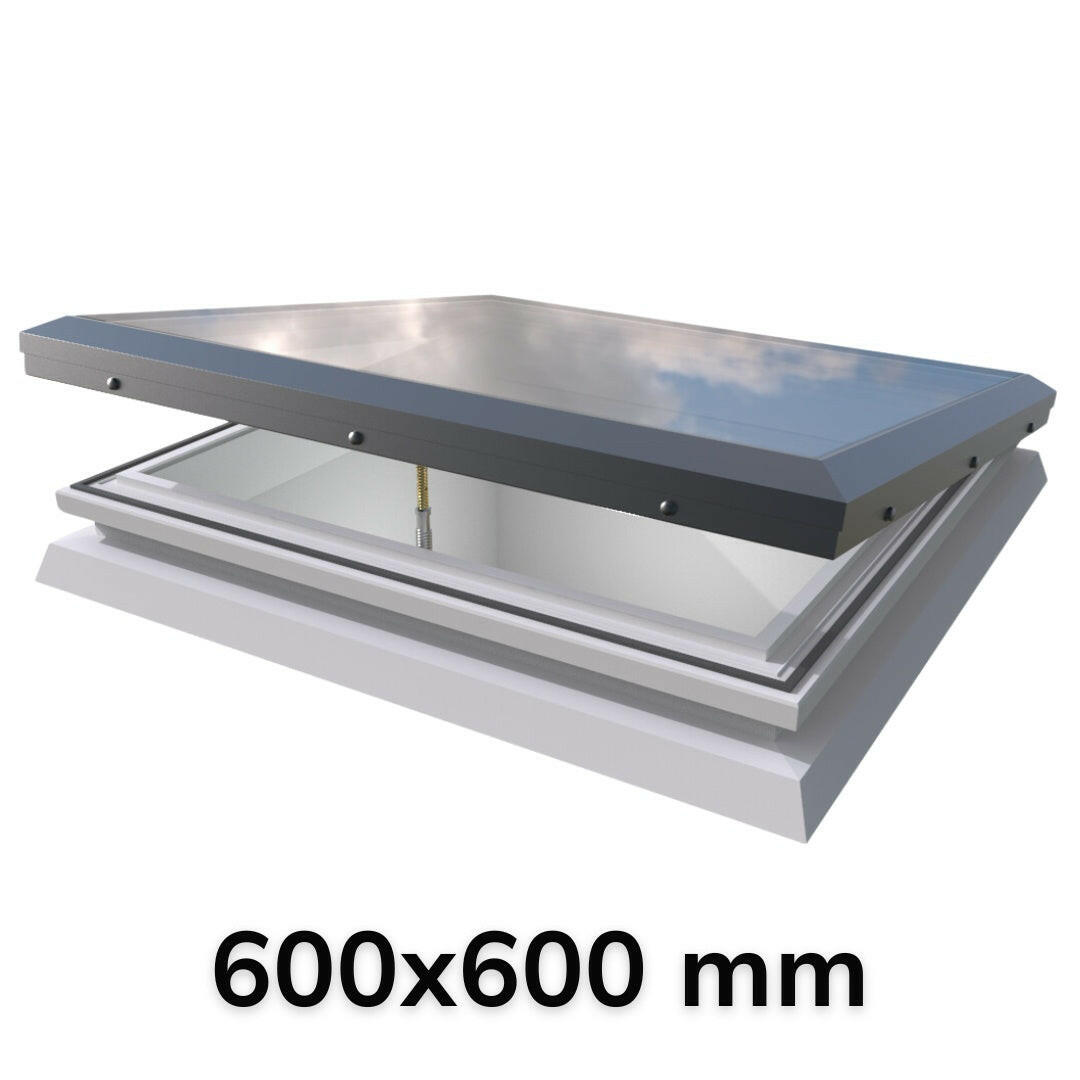

600 x 600 mm Brett Martin Manual Opening Flat Roof Skylight

The Brett Martin Manual Opening Skylight for Flat Roofs is a modern and efficient solution, designed to enhance both lighting and ventilation in contemporary residential and commercial spaces. This skylight perfectly complements today’s architectural styles, such as flat roof extensions and open floor plans, by bringing in ample natural light and uplifting the overall ambiance.

Installation is simple, with the option to mount it on a builder's timber upstand or choose from 150mm or 300mm uPVC upstands for greater versatility, allowing it to seamlessly blend into various architectural styles.

This skylight is not only about light—it also features a manual opening system that improves indoor air quality by facilitating proper ventilation, reducing moisture, and promoting a healthier indoor environment.

The Brett Martin Manual Opening Skylight is a durable and flexible option, making it an excellent choice for any flat-roofed building. Whether used in a cosy home or a large commercial property, its robust design ensures long-lasting performance and a significant enhancement to the space.

To assist with the installation process, we provide detailed installation videos on our website.

Please note that all Brett Martin skylights are made to order and therefore non-returnable, so be sure to confirm your specifications and measurements before finalising your purchase.

Download Technical Datasheet

Size:

• External size (quoted): 600 x 600 mm
• Daylight area: 450 x 450 mm

Frame and Materials:

• Material: Extruded aluminium for durability
• Finish: Powder-coated in RAL 7016 grey for a premium look and increased durability
• Thermal Isolation: Optimally isolated to enhance thermal performance

Glazing Details:

• Outer Pane: 6mm toughened glass
• Cavity: Insulated with 90% argon gas
• Inner Pane: Laminated glass adapted to skylight size
• Coating: Soft coat Low-E for superior thermal efficiency

Opening Mechanisms:

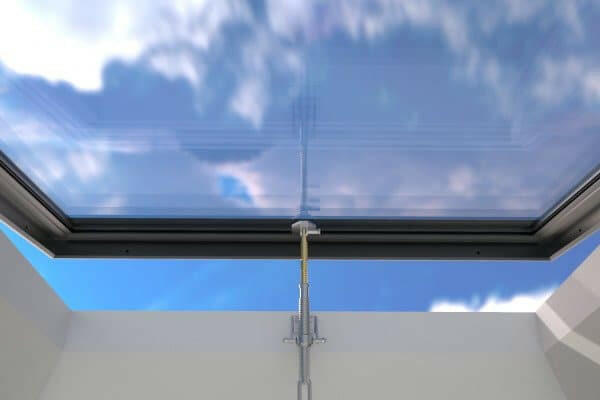

• Manual Opening: This hinged skylight features a manual worm gear mechanism and includes a 2m extension pole, allowing for effortless operation

Kerbs:

• Material: Lead and cadmium-free unplasticised PVC
• Construction: Rigid multi-wall extruded profile
• Interior Finish: White

Glazing Properties:

• Light Transmission: 79%
• U-Value: 1.1 W/m²K for effective insulation
• G-Value: 0.61, controlling solar radiation
• Glazing Specification Data Sheet

Ventilation Options:

• Manual Trickle Vents: Manually controlled, provides 8400mm² of ventilation area
• Automatic Trickle Vents: Humidity and sensor-regulated, delivers 7822mm² of ventilation area, with advanced protection against condensation

Installation Requirements:

• Suitable Pitches: Ideal for roof pitches between 2° and 15°
• Minimum Pitch Requirement: 2° or 4° to prevent water ponding and debris accumulation

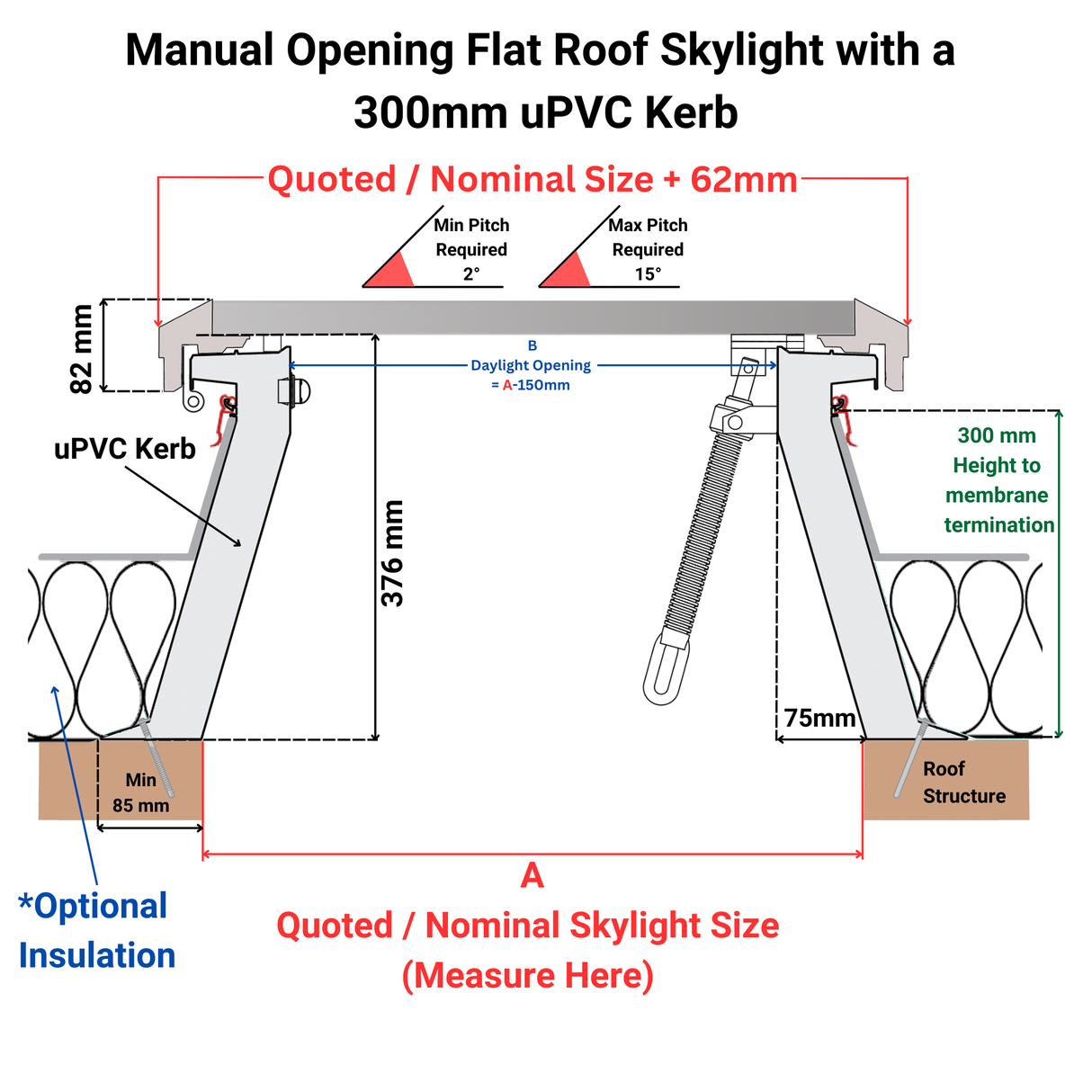

Mounting Options:

• With Existing Upstand: Fits fixed unventilated rooflights; ventilated or operable models include an adapter kerb

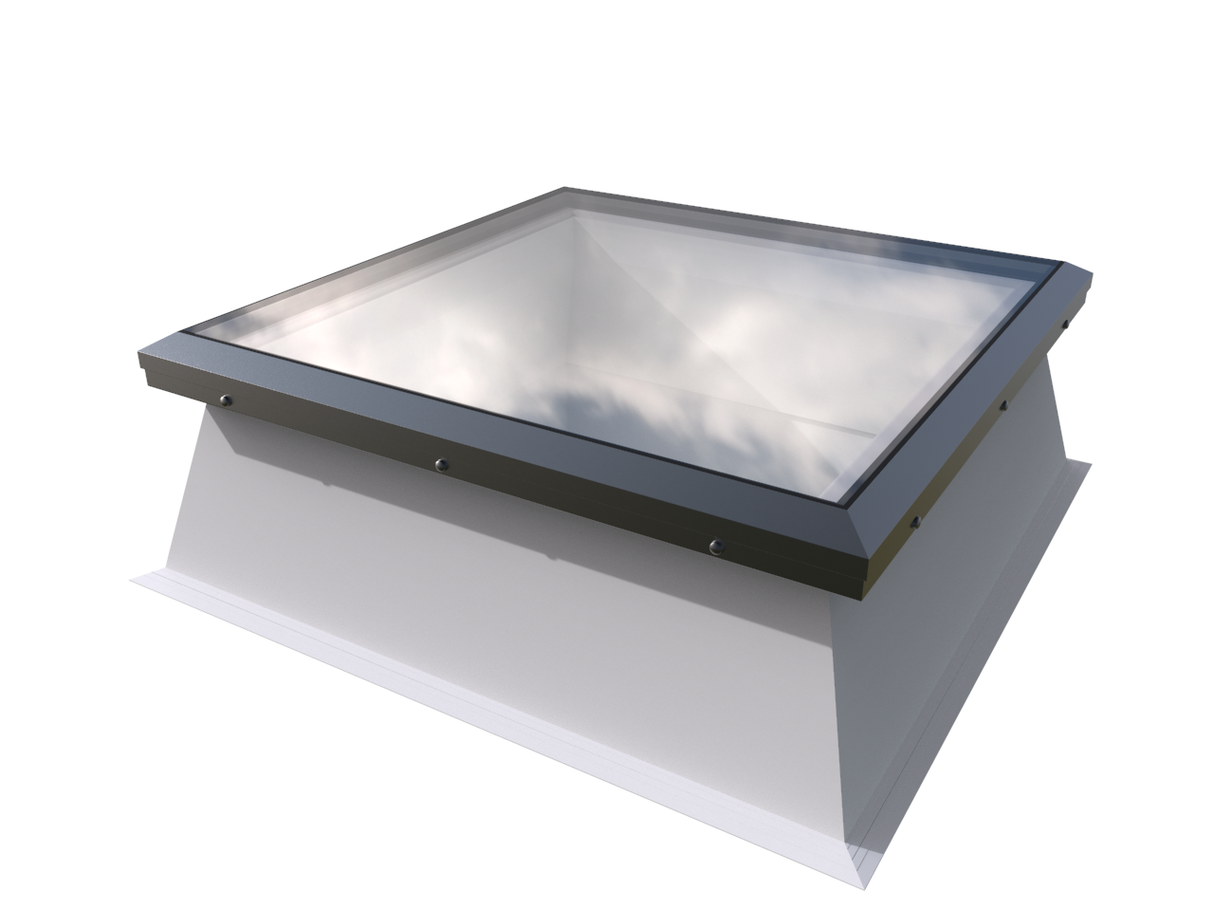

• Without Existing Upstand: Available with a 150mm or 300mm PVC kerb for roof level mounting

Product Care Datasheet

Manual Opening Skylight on Builder's Upstand - Installation Video

Manual Opening Skylight with a uPVC Upstand - Installation Video

Installation Guide

Certifications:
Brett Martin Daylight Systems' Flat Glass Rooflights are specifically crafted for installation on flat roofs in a variety of modern buildings, designed to maximise natural light and provide effective ventilation. These rooflights are produced in line with ISO 9001 standards, ensuring exceptional quality and reliability. With a sleek, contemporary design, they feature a slimline, powder-coated frame and a flush-fitting glass panel for a sophisticated finish. This entire range has been fully approved by the BBA (British Board of Agrément) under certification 06/4385. Additionally, all fixed models have earned the Secured by Design accreditation, highlighting their enhanced security features.

Safety Standards and Compliance:
The Brett Martin Flat Glass Rooflights meet CWCT TN-67 non-fragility standards for class 1 roofs and are rated ACR[M]001 class B for non-fragility when newly installed according to Brett Martin Daylight Systems' guidelines. Although these rooflights are built to be durable, it is important to avoid walking on them, as this can cause damage and may require replacement. All glass panels conform to BS EN12150, BS 14449, and BS 1279 standards, ensuring full compliance with safety regulations.

BBA Approval Inspection Testing Certification

Brett Martin Flat Glass units are engineered to retain their performance and durability in standard industrial environments for up to 20 years. We offer a 10-year warranty that covers issues such as perforation, significant loss of structural integrity, and any distortion that may affect weather-tightness. The warranty specifics include:

• Insulated Glass: Protected for 5 years, ensuring the long-lasting quality and functionality of the glass components used in the rooflight.

If you find any cracks in the glass upon delivery, please contact us right away. To be eligible for a return or replacement, it is important that any damage is reported within 12 hours of delivery. Promptly informing us of any issues ensures we can resolve them quickly and efficiently.
