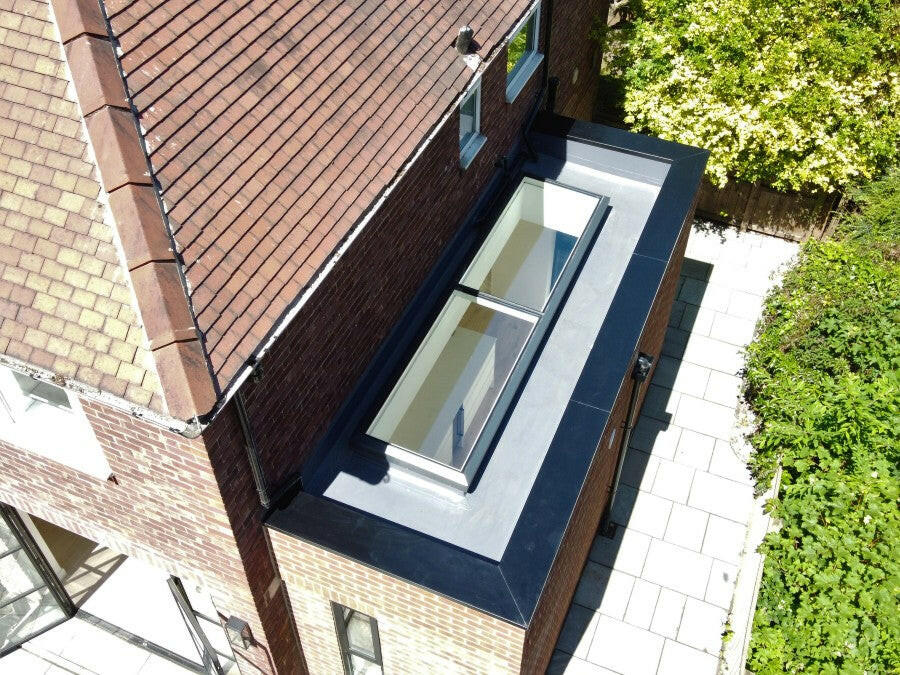

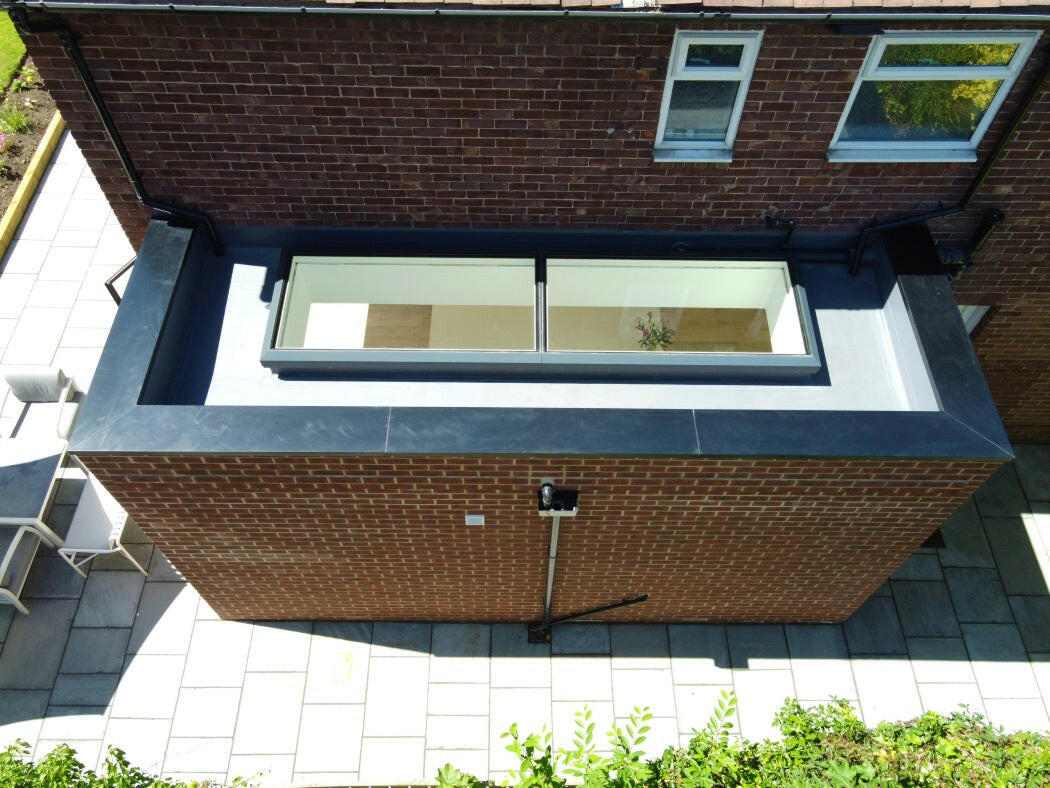

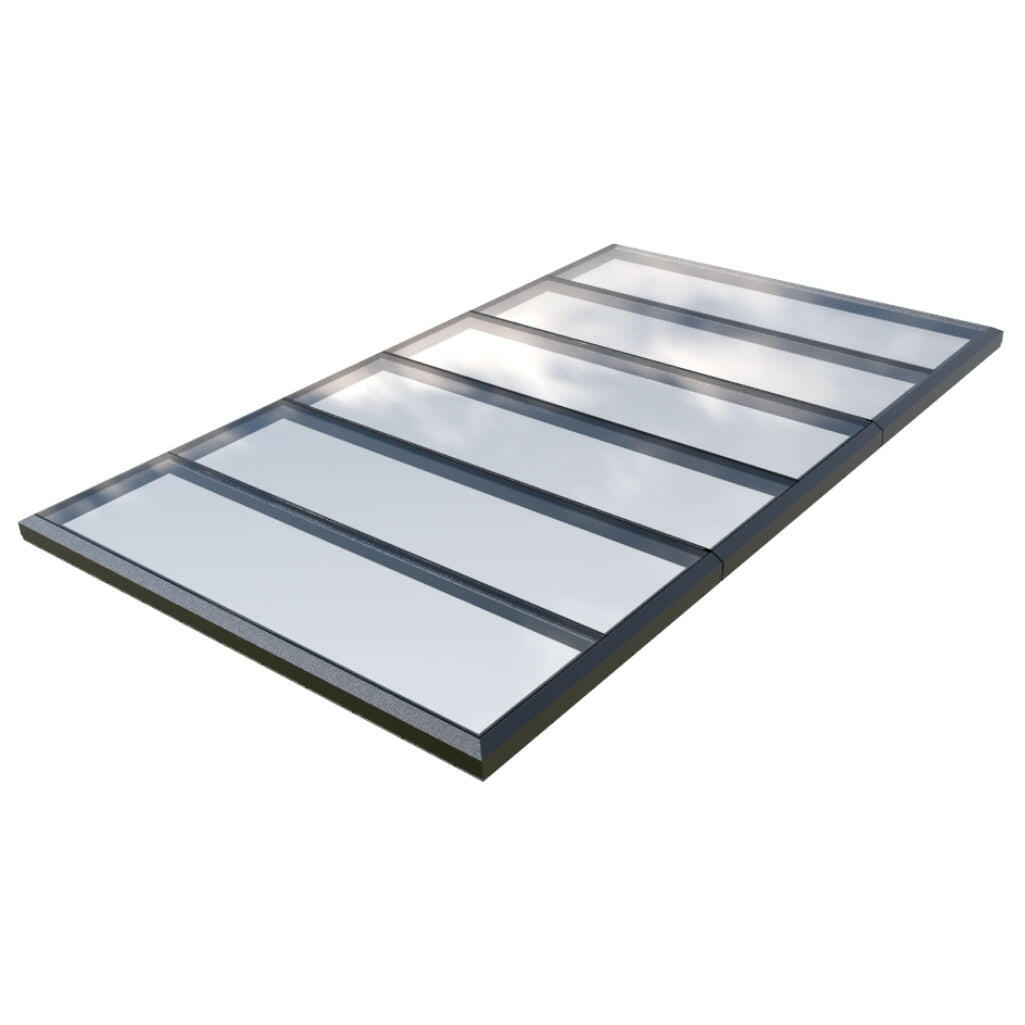

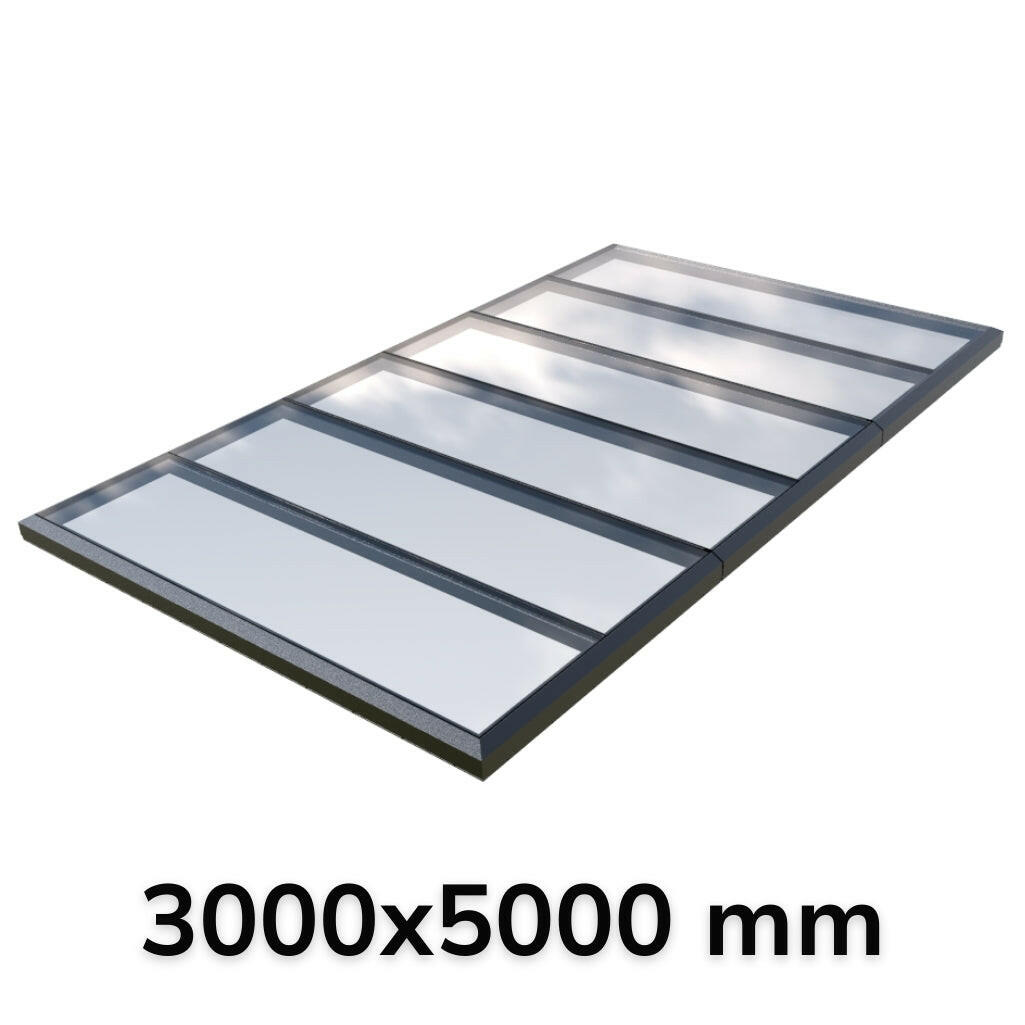

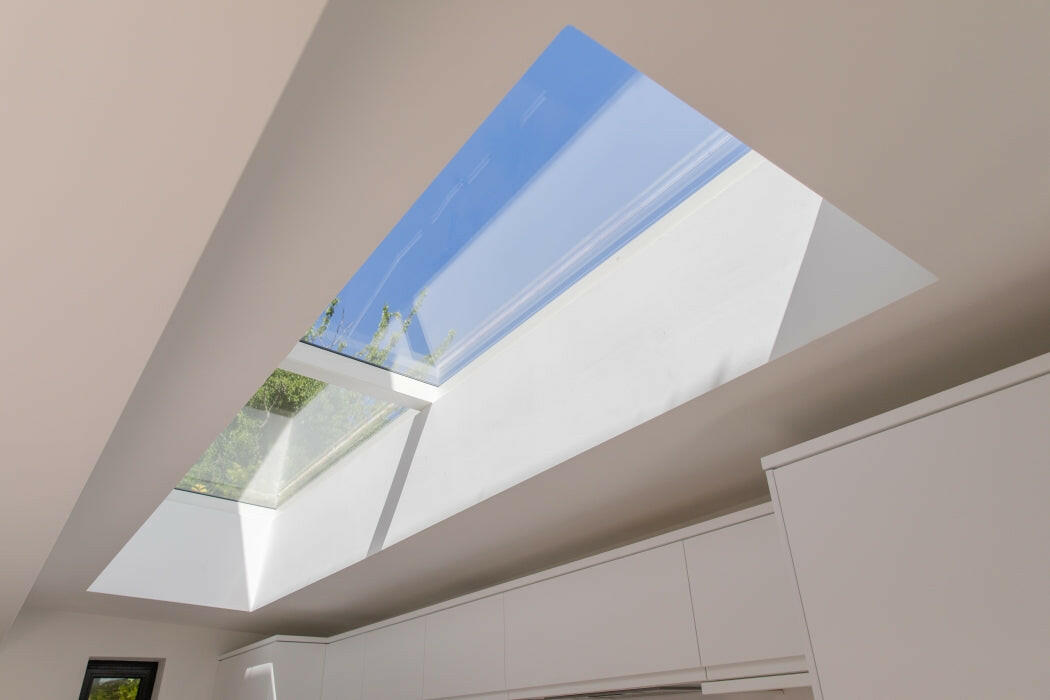

3000 x 5000 mm Fixed Glass Link Modular Skylight (3 Fixed 0 Opening)

• Seamless Integration: Adapts to roof pitches from 2° to 35° for a perfect, modern fit.
• Optimal Natural Light: Large glazed area with minimal framing enhances interior brightness.
• Enhanced Energy Efficiency: Features a thermally broken frame with Low-E double-glazed glass for reduced heat loss.
• Robust, Modern Design: Durable, powder-coated aluminium frame in Anthracite Grey (exterior) and White (interior) for lasting style.

The Glass Link Fixed Modular Skylight is the ideal solution for bringing uninterrupted natural light into large, open spaces. Its sleek, flush design offers a contemporary aesthetic that enhances modern architectural styles, making it perfect for both residential and commercial projects.

Why Choose Glass Link Fixed Skylights?

• Continuous Natural Light – Large glazed areas with minimal framing flood interiors with daylight, creating bright and inviting environments.
• Effortless Integration – Adaptable to roof pitches from 2° to 35°, seamlessly fitting a variety of architectural designs.
• Quick and Easy Installation – Factory-glazed modules lap together without the need for additional sealants, ensuring fast installation and superior weather tightness.
• Thermal Efficiency – The thermally broken aluminium frame and Low-E double-glazed glass provide outstanding insulation, reducing heat loss and enhancing energy performance.
• Unmatched Safety – Laminated inner panes ensure the skylight meets CWCT TN-67 (Class 2) and ACR[M]001 Class B standards, offering protection for those below and above the skylight.
• Durable and Stylish – Built from powder-coated aluminium (Anthracite Grey RAL 7016 exterior and White RAL 9010 interior), this skylight delivers exceptional durability and sleek design.
• Secured by Design – Provides enhanced security, making it a robust addition to any property.

Bring a sense of openness and brightness to your space with the Glass Link Fixed Modular Skylight – a simple, efficient, and stunning way to elevate your project.

Download Technical Datasheet

Design and Build

• Pre-assembled modules designed for quick and seamless installation.

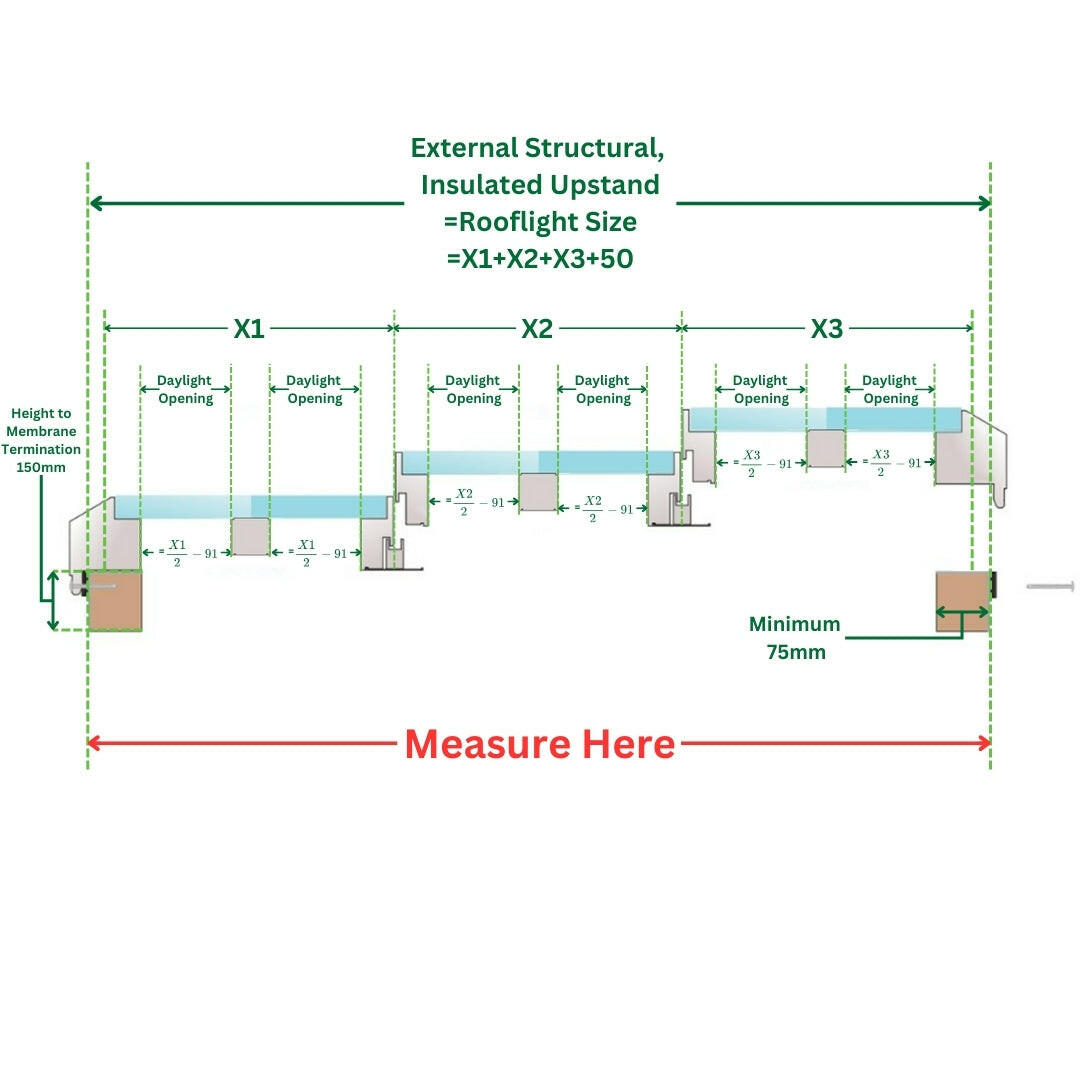

• Modular system allows for skylights in extended lengths by connecting multiple units.
• Fully flush design across all modules for a sleek, contemporary appearance.
• Dual colour aluminium frame, powder-coated in Anthracite Grey (RAL 7016) externally and White (RAL 9010) internally.
• Thermally broken aluminium frame for superior energy efficiency.

Installation and Compatibility

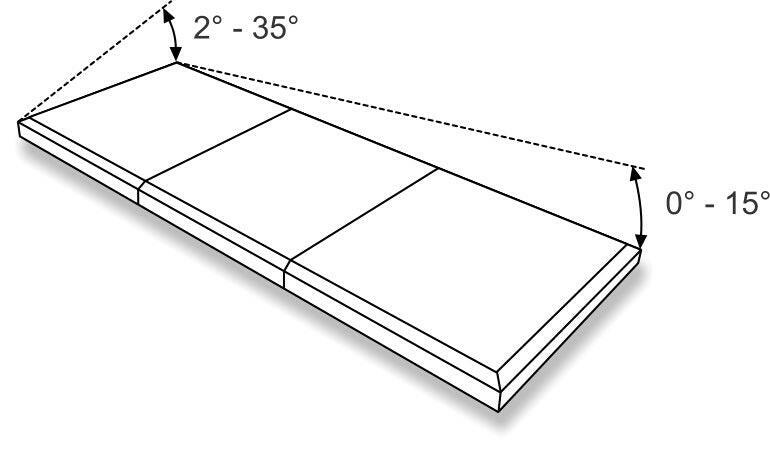

• Suitable for roof pitches between 2° and 35° across the span and 15° along the length.
• Larger modules may require a minimum pitch of up to 5°
  Longitudinal pitch ranges from 0° to 15°
• Designed to promote effective drainage and prevent water pooling.


Glazing Details

• 6mm toughened outer glass pane for strength and durability.
• 16mm argon-filled spacer for enhanced insulation.
• 9.5mm laminated inner pane with 1.5mm PVB interlayer (increased to 11.5mm for larger panes).
• Low-E glass coating to improve thermal performance and energy efficiency.


Glazing Performance

• Light Transmission: 77% - 78%
• G-Value (Solar Gain): 0.56 - 0.57
• Reflectance: 12%
• Shading Coefficient: 0.64 - 0.65

Performance Standards

• Certified non-fragile to CWCT TN-67 for Class 2 roofs.
• Class B non-fragile rating to ACR[M]001
• Secured by Design accreditation for enhanced security.
• U-Value between 1.90 and 2.1 W/m²K
• Acoustic rating of 39dB (Rw) for sound insulation.
• Wind load resistance up to 1200 N/m²
• Snow load resistance up to 600 N/m²


Warranty and Certification

• 10-year commercial warranty for reliability and long-term performance.
• Manufactured in accordance with ISO 9001 and ISO 14001 standards.


Sustainability and Materials

• Thermally broken aluminium frame for superior energy efficiency.
• Constructed using recyclable materials, including aluminium, glass, ABS, and PVC.
• BRE Verified Environmental Product Declaration (EPD) ensuring environmentally responsible production.

Product Care Datasheet

Installation Guide

Safety Requirements and Construction Design Management (CDM)

• Non-Fragility: Glass Link modules comply with CWCT TN-67 for non-fragility in class-2 roofs and ACR[M]001 class B non-fragility when new and properly installed according to Brett Martin Daylight Systems' installation guidelines.
• Protection for Occupants: The inner glass pane is laminated to protect individuals inside buildings, adhering to Rooflight Association (formerly NARM) NTD14 industry guidelines.
• Precautions: It is crucial to avoid foot traffic on rooflights. Impacts such as foot traffic or falling persons may damage the rooflights, possibly requiring replacement.
• Compliance Standards: All glass panels meet the standards set by BS EN12150, BS 14449, and BS 1279, ensuring high quality and safety.

Security

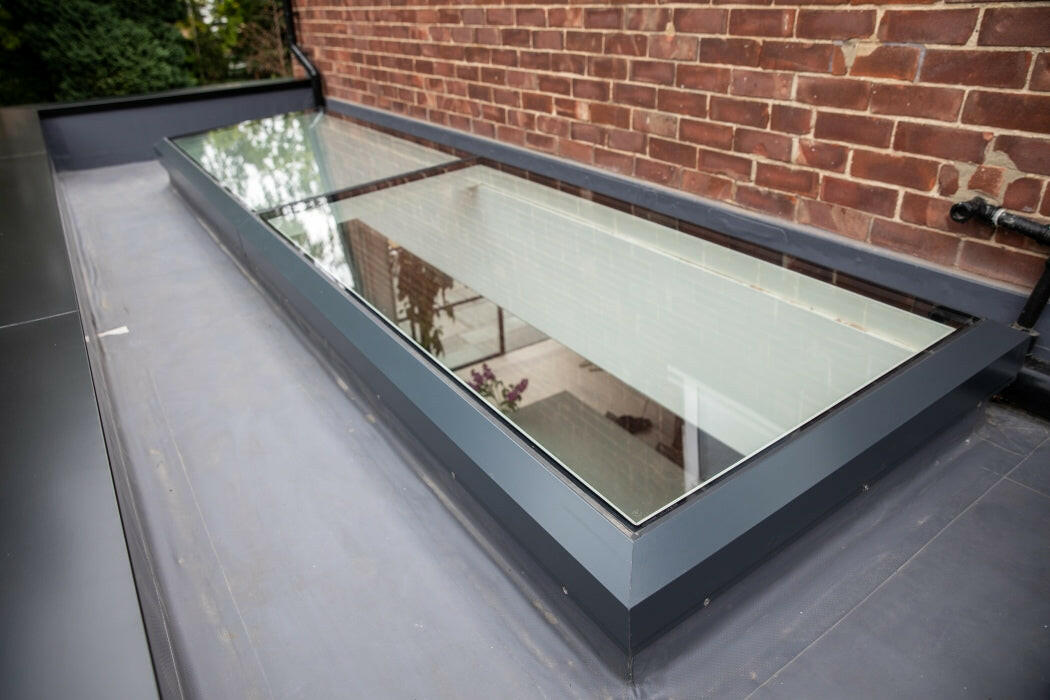

• Installation and Fixings: Each product is installed on a structural, insulated builder's upstand using self-drilling, anti-tamper security fixings to enhance security.
• Accreditation: All fixed Glass Link rooflights have achieved Secured by Design accreditation, a recognized standard for products that contribute to the security of buildings.

Fire Performance

• Fire Resistance: Glass used in these rooflights is designated as Class A according to EN13501 part 1 and is listed among CWFT (classified without further test) materials, as published in the Official Journal of the EU (European Commission Decision 96/603/EC).
• Building Regulations Compliance: The rooflights feature a 6mm toughened outer pane, ensuring a BROOF(t4) classification in line with building regulations, which pertains to the external spread of flame and heat penetration.

Wind and Snow Load Resistance

• Wind Load Resistance: These modules resist wind loads up to 1200 N/m², adhering to the requirements specified in BS EN 1991-1-4: 2005. This standard assesses the general actions on structures caused by wind, ensuring that the modules maintain structural integrity under typical wind conditions.
• Snow Load Resistance: They are also designed to withstand snow loads of up to 600 N/m², as specified by BS EN 1873: 2005. This standard pertains to the performance of non-accessible roof coverings under various imposed loads, including those caused by snow.

Structural Warranty: Glass Link Rooflights are guaranteed to remain fit for purpose under normal industrial conditions for 20 years with a 10-year warranty against becoming perforated, losing significant structural integrity, or distorting to the extent of losing weather-tightness.

Insulated Glass Warranty: Insulated glass used in the construction of the rooflights is warranted for 5 years.

If you find any cracks in the glass upon delivery, please contact us right away. To be eligible for a return or replacement, it is important that any damage is reported within 12 hours of delivery. Promptly informing us of any issues ensures we can resolve them quickly and efficiently.
