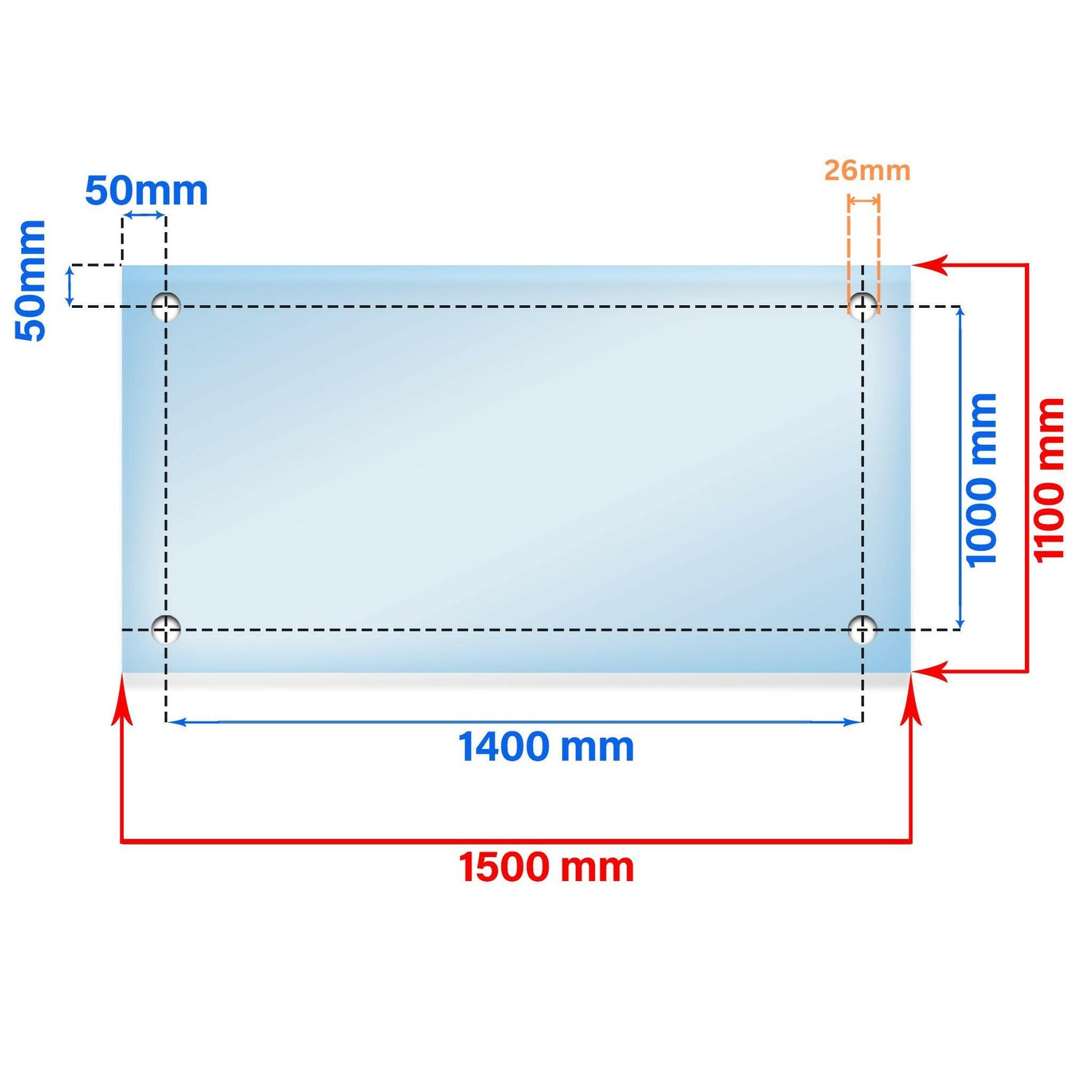

1500 x 1100 mm LD Toughened Laminated Glass Juliet Balcony

Elevate the aesthetics of your home with our stylish Juliet balconies, crafted from toughened laminated glass for durability and safety. These balconies serve as a minimalist yet elegant addition, ideal for properties with limited space. Their streamlined design allows for the exterior charm of a traditional balcony without the extensive structural alterations.

Our Juliet balconies are designed to maximise the inflow of natural light, creating a more spacious and inviting atmosphere inside your home. They are easy to install and provide a cost-effective solution to enhance both the interior and exterior of your property. With their durable construction and sophisticated appearance, our Juliet balconies offer a blend of functionality and style that can significantly boost your home’s appeal.

Glass Thickness: 13.5mm toughened laminated glass

Glass Types:

• Clear Glass: Ensures maximum light transmission with minimal tint.
• Sandblast Glass: Provides privacy while still letting in light.

Please note that metal fittings are not included.

Measuring Instructions:

1. Determine the Structural Opening Size:
   Start by measuring the width of the structural opening where you plan to install the Juliet balcony. For instance, if the opening measures 2000mm, this is your base measurement.
2. Adjustment for Brick Mounting:
   If you are mounting the glass Juliet balcony on a brick structure, you need to increase the width measurement to accommodate an overhang. Add 300mm to the structural opening size, which will extend the glass 150mm on each side. This adjustment means that for a 2000mm opening, the overall width of the glass should be 2300mm.
3. Check the Fixing Centres:
   The fixing centres, which are the points where the balcony will be anchored, should be considered next. In the example of a 2300mm wide glass, the fixing centres would typically be set at 2200mm apart.
4. Considerations for Dormer Lofts with Timber Structures:
   For installations in dormer lofts that have a timber structure with tiles, focus on the measurements between the timber post supports. Measure from the centre of the timber post on one side to the center of the post on the opposite side. If this centre-to-centre measurement is 2200mm, then a glass Juliet balcony of the previously mentioned size would be appropriate.

Note:

• Always ensure to review specific sizes and hole positions for your selected product. This guide uses an example size; always adapt measurements based on your specific situation and the product specifications provided.

Fitting Requirements:

1. Materials Needed for Installation:
   You will need to acquire M10 rods, round stand-off brackets, and 10mm back spacers. These materials are available from most building supply stores, ensuring you can secure and properly space the balcony during installation.
2. Fixing Methods:

• For Brick or Concrete Structures: Secure the M10 rods with a 2-part resin for a robust fixation.
• For Wooden Structures: Fasten the M10 rods internally using a nut and washer for a secure hold.

Note:

• Ensure that all required materials are acquired and measurements are verified prior to installation. Check product specifications and installation requirements meticulously to ensure a successful setup.

• All of our products are fully compliant with British Standards & Building Regulations and carry all necessary Safety Certifications.
• They are also CE marked, demonstrating compliance with applicable EU directives and standards for products distributed within the European Union.
• Certified Toughened BS EN 12150

Should you discover a crack in the glass upon delivery, it is essential that you notify us immediately. Failure to report the damage within 12 hours of delivery will invalidate your eligibility for a return or replacement. Please contact us promptly to address the issue.
