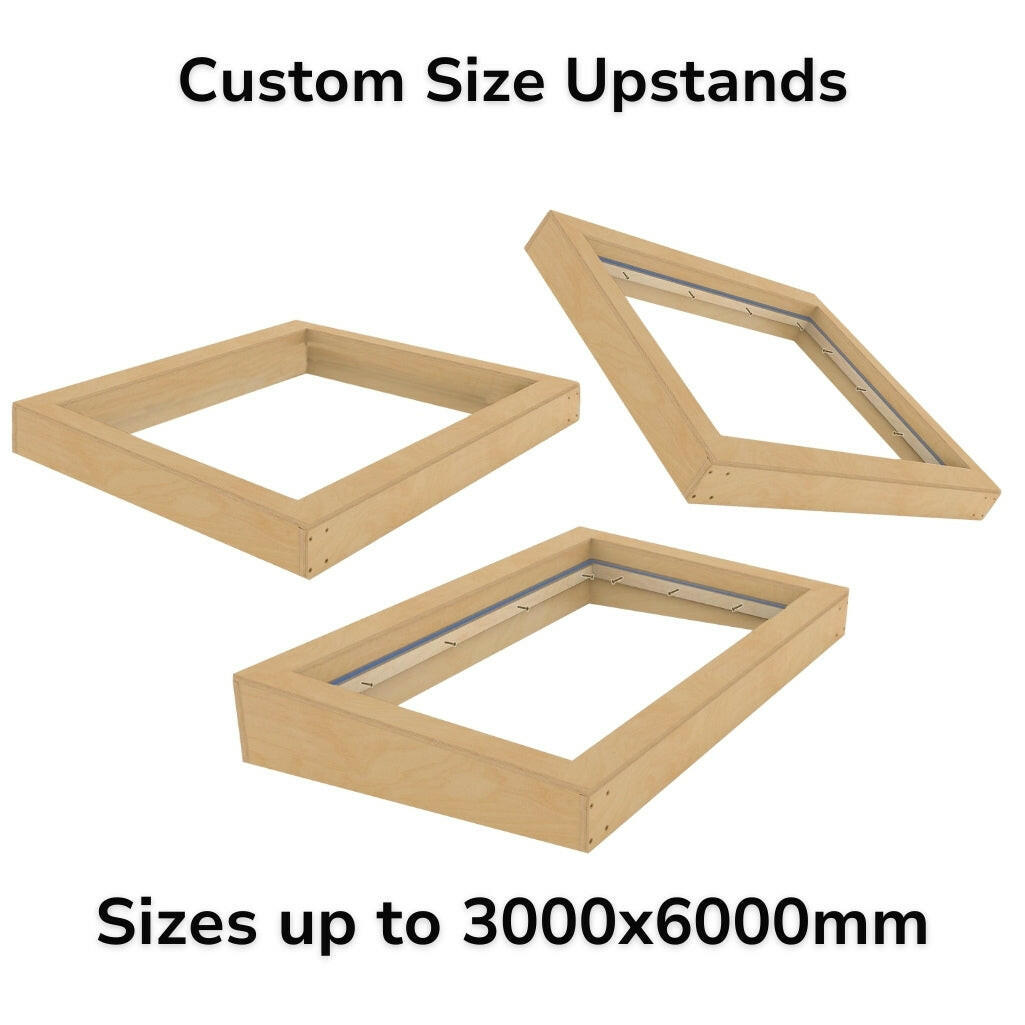

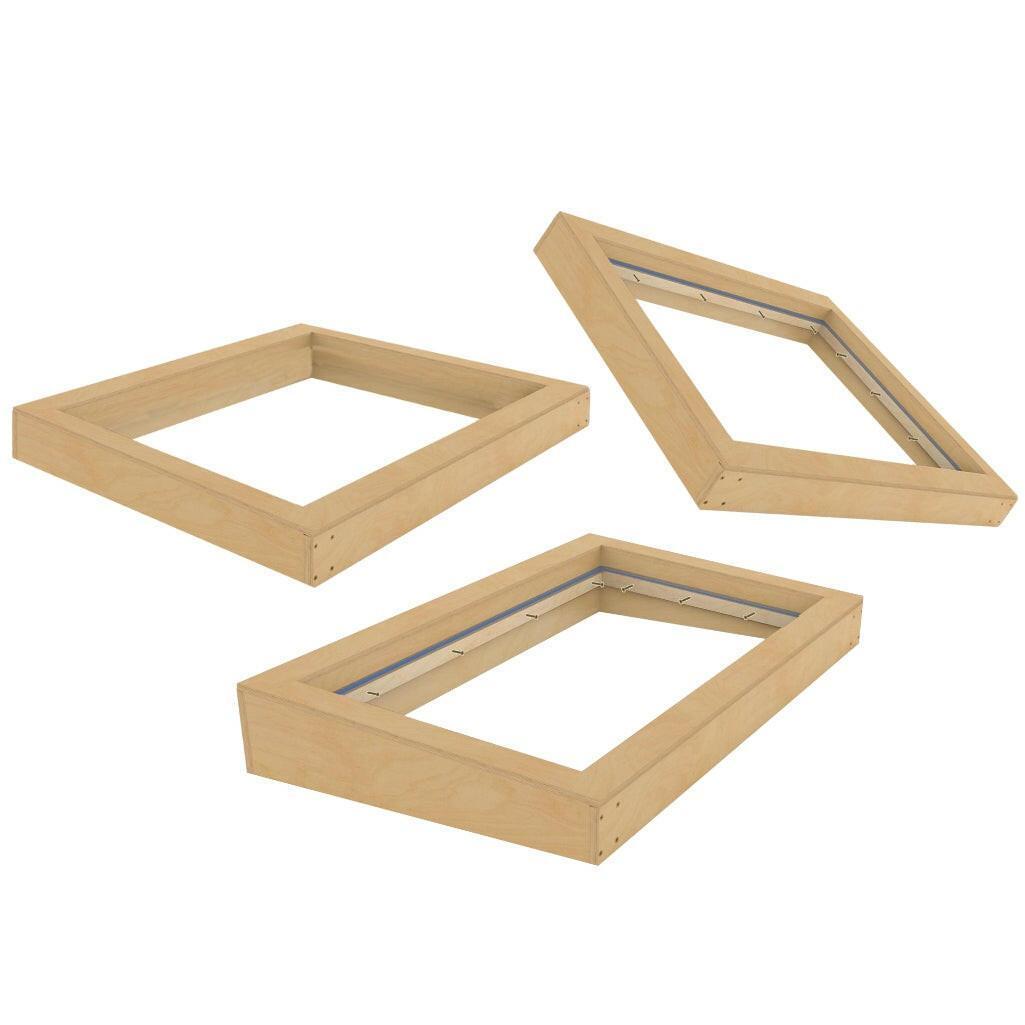

Custom Size Insulated Upstand for Flat/Pitched Roof Skylights & Roof Lanterns
Couldn't load pickup availability
Description
Description
Explore our Insulated Builder's Upstand, perfect for skylight and roof lantern installations. This upstand is designed to enhance thermal efficiency and ensure superior structural durability and weatherproofing without specific insulation materials mentioned.
Key Advantages:
- Enhanced Thermal Efficiency: Helps maintain a comfortable indoor environment and reduces energy costs by minimising heat transfer.
- Exceptional Durability: Made from WBP hardwood structural plywood, our upstand offers outstanding strength and long-lasting performance under various conditions.
- Airtight Seal: Optimally designed to improve the rooflight's resistance to weather elements by effectively sealing out water and air, enhancing indoor climate control.
- Ideal Elevation: Properly elevates skylights to prevent water accumulation, ensuring a clear view and extending the lifespan of the rooflight.
- Streamlined Installation: The uniform quality of the upstand simplifies installation, reduces the potential for damage during setup, and cuts down on both time and installation costs.
Our Insulated Upstand is your ideal choice for a reliable, efficient installation of skylights and roof lanterns, ensuring functionality and peace of mind with every setup.
Please note that all custom upstands are made to order and therefore non-returnable, so be sure to confirm your specifications and measurements before finalising your purchase.
Specifications
Specifications

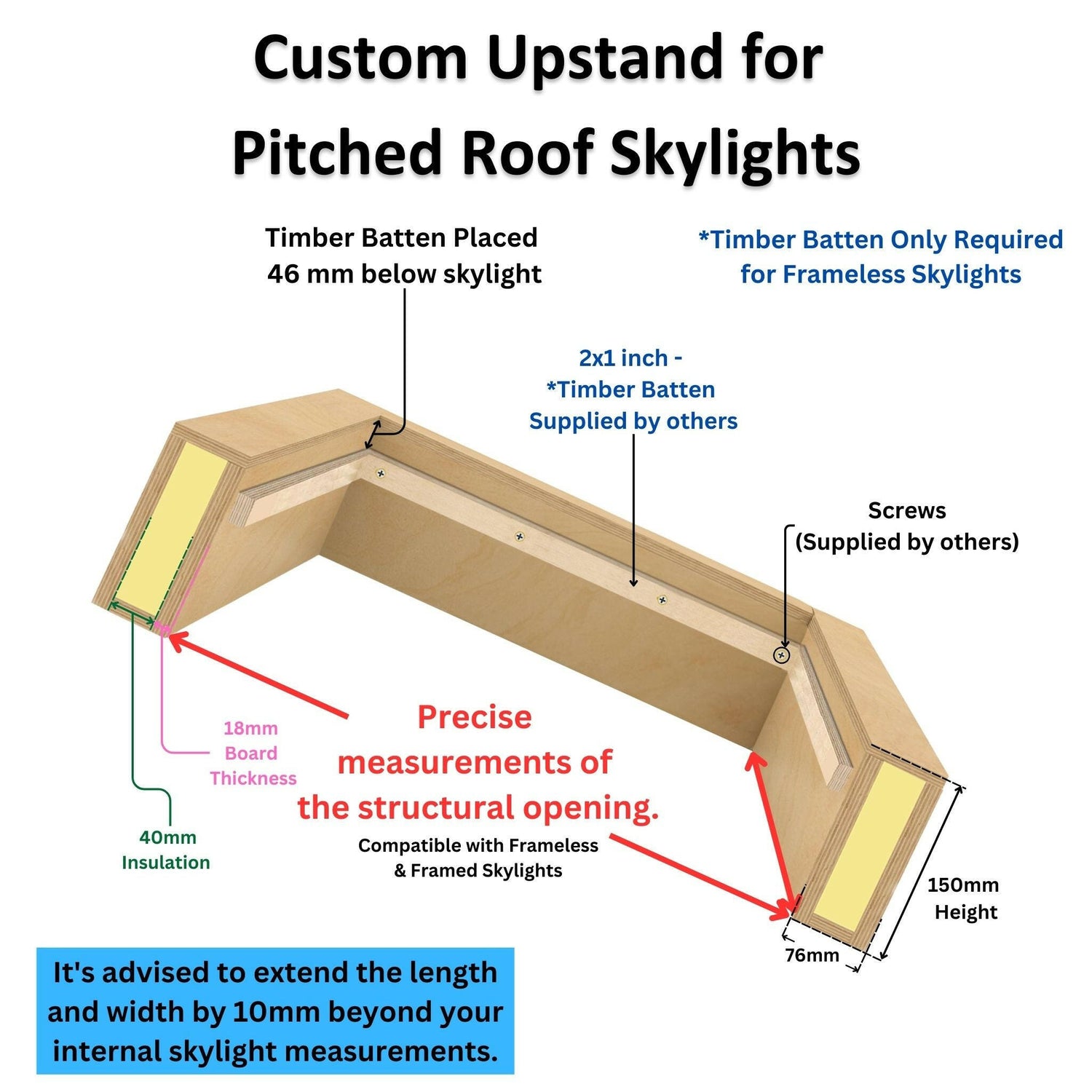

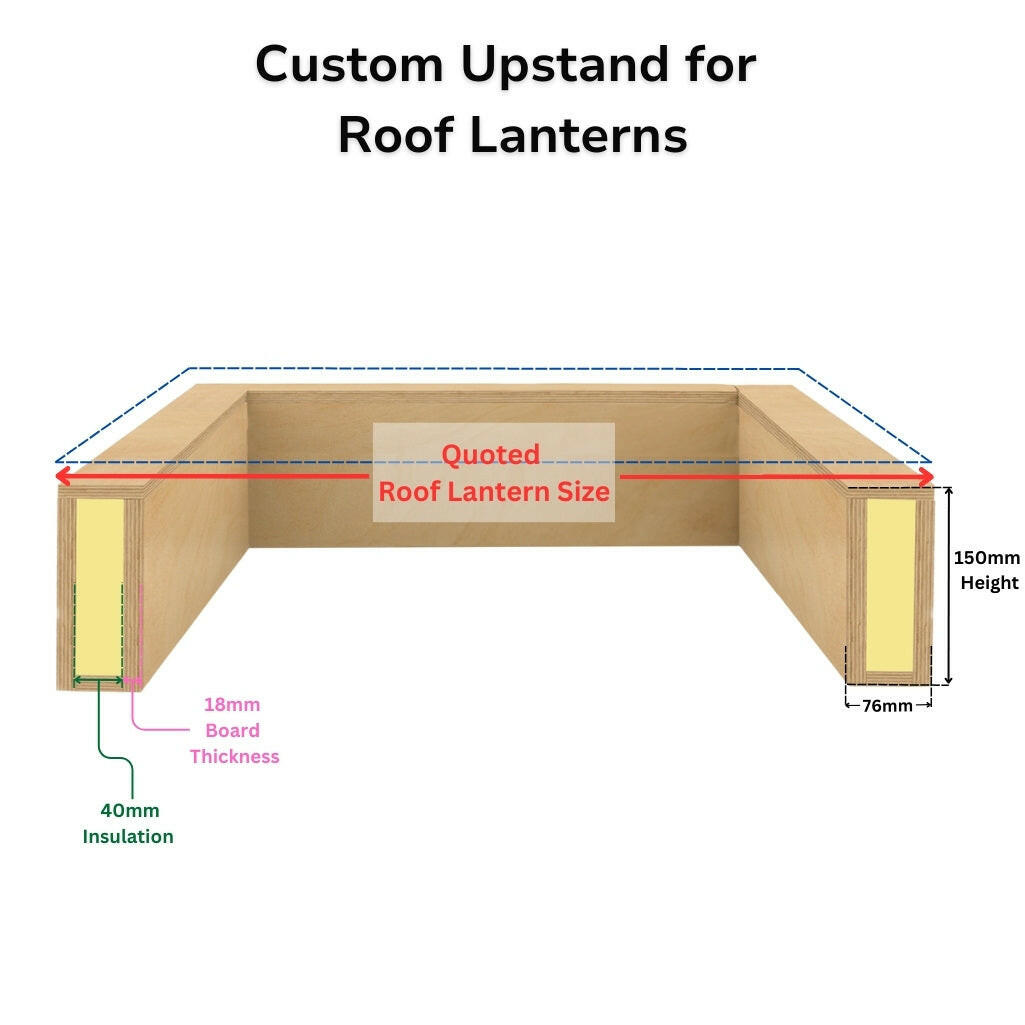

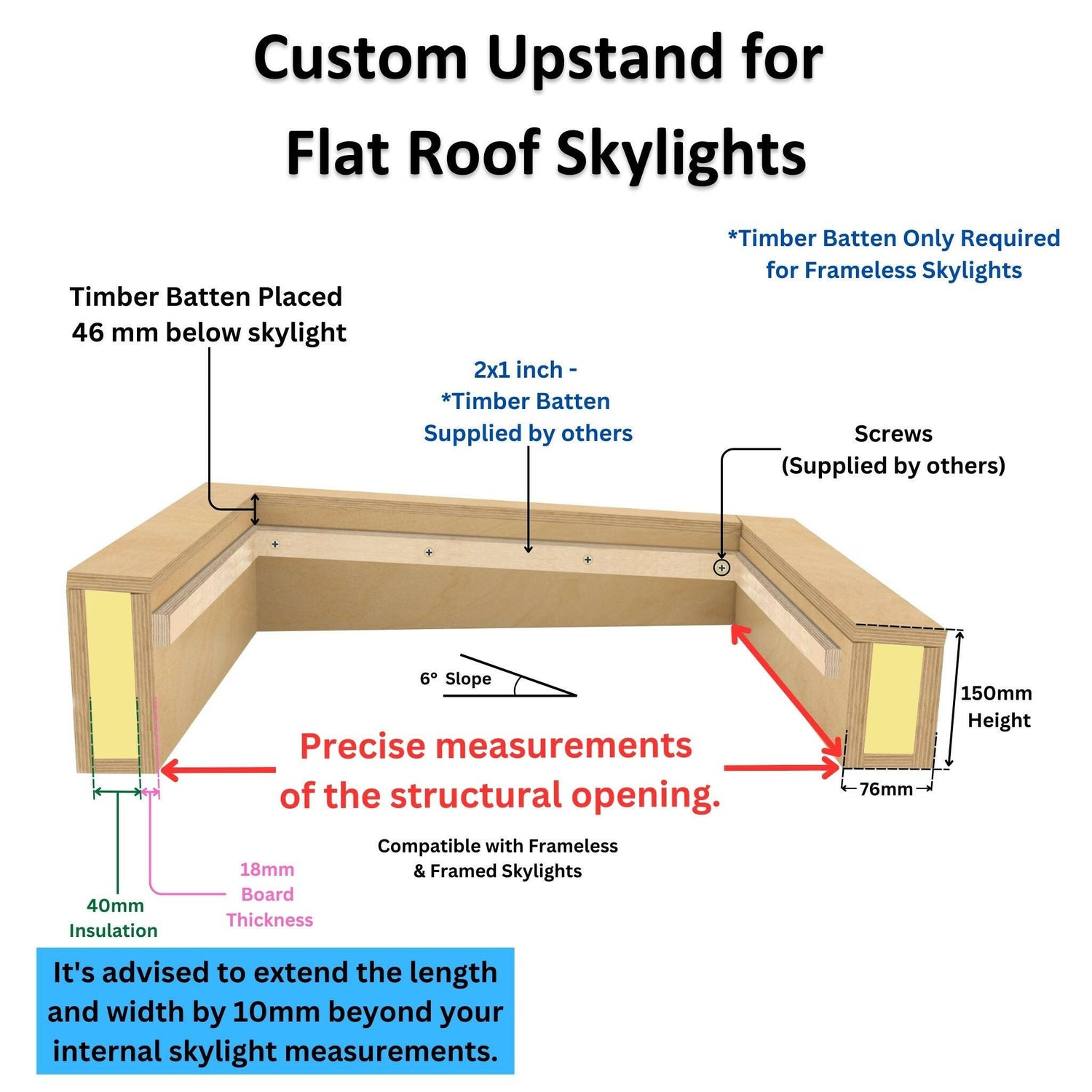

- Core Insulation: Includes a 40mm core cavity designed to maximise thermal efficiency and minimise heat loss.
- Thermal Performance: Delivers a superior heat loss value of 0.63 W/m²K, enhancing energy efficiency by reducing unwanted heat transfer.
- Roof Compatibility: Engineered for cold roof applications, offering versatility for a wide range of roofing projects.
- Roof Covering Compatibility: Compatible with all roof covering types, ensuring adaptability for diverse installation needs.
- Dimensions: Available in precise, pre-measured sizes to ensure a perfect fit for any project, streamlining the installation process.
- Material Composition: Made from 18mm WBP hardwood structural plywood, known for its strength, durability, and long-lasting performance. This material complies with EN13986 standards for construction-grade wood-based panels and meets EN12871, making it suitable for walls, floors, and roofing applications. It is manufactured with EN314-2 Class 2 glue for added resilience and is rated EN636 Class 2, ensuring suitability for both indoor use and humid conditions. Additionally, the panel adheres to the latest E1 European low emission standards, making it a sustainable and environmentally conscious choice.
This Insulated Upstand is meticulously crafted to enhance the performance of rooflights. Combining exceptional thermal efficiency, compatibility with various roofing systems, and compliance with modern construction standards, it provides a dependable, energy-efficient solution for maintaining comfortable indoor environments and reducing energy costs.
Delivery and Shipping
Delivery and Shipping
ECONOMY NATIONWIDE SHIPPING: 2-4 Working Days
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Advanced Construction and Material Quality
Our Insulated Upstand is crafted from high-quality, 18mm thick WBP hardwood structural plywood that delivers unmatched structural integrity and durability.
Designed to withstand the rigors of rooftop conditions, chipboard provides a solid foundation that is less prone to warping or degradation over time compared to traditional materials. This upstand's construction is further enhanced by a 40mm insulated core cavity, specifically engineered to bolster thermal performance. The core's insulation significantly reduces heat transfer, which not only helps maintain a comfortable indoor environment but also contributes to lower heating and cooling costs, making it an eco-friendly choice for modern building needs.
Optimised Design for Enhanced Performance
Tailored to support both cold and warm roof installations, the Chipboard Insulated Upstand is versatile enough to be used with all types of roof coverings. Its precise engineering ensures that each upstand fits seamlessly, providing an optimal elevation that prevents water pooling and promotes effective drainage, crucial for maintaining clear and unobstructed views.
The design also includes an airtight seal that protects against water ingress and air leaks, enhancing the overall energy efficiency of the building. Easy to install, the uniform quality of WBP hardwood ensures that the upstand can be quickly and accurately fitted, reducing installation time and potential for errors, which translates to savings in both time and labor costs for contractors and homeowners alike.
