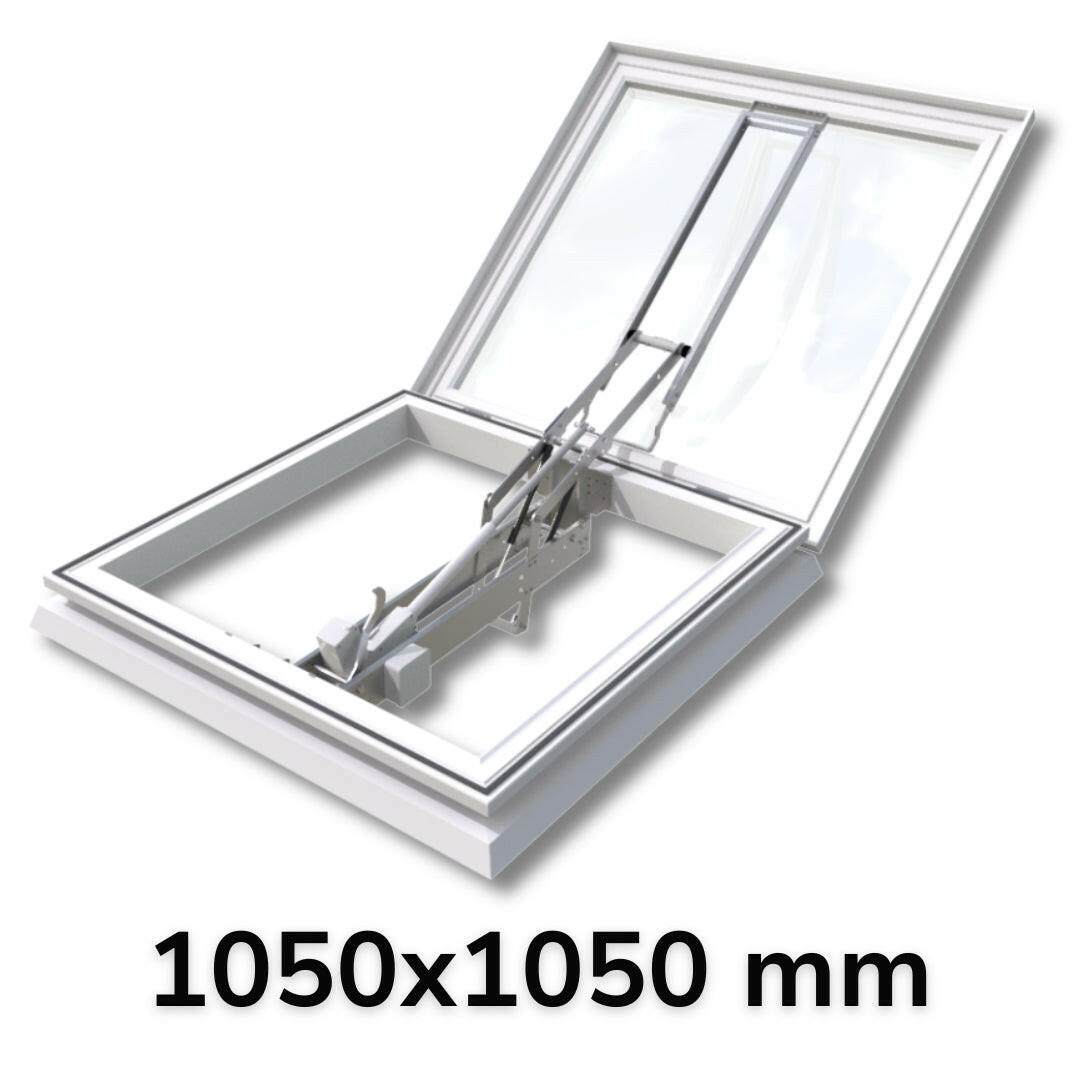

1050 x 1050 mm Smoke Vent Rooflight by Mardome

Smoke Vent Rooflights by Mardome – Premium Smoke Ventilation and Access Solution

Mardome Smoke Vent Rooflights provide an advanced solution for natural smoke ventilation and heat exhaust, specifically designed for flat roofs in modern buildings. These polycarbonate smoke vents not only ensure effective smoke and heat extraction, but also offer the convenience of comfort ventilation. Additionally, they can be configured as a dual-purpose access hatch, making them a versatile choice for various applications.

Ideal for commercial smoke ventilation, schools, public sector buildings, and residential properties, Mardome Smoke Vents are designed to meet both safety and comfort needs. The contemporary design maximises natural light, while offering reliable smoke control systems for flat roofs in new constructions and renovation projects.

Key Features:

• Available in various sizes and customisation options
• Double or triple skin units, with triple skin for enhanced thermal efficiency and reduced condensation
• Multiwall PVC kerb with thermally efficient triple-wall structure
• Steep kerb walls for increased glazed area, allowing more natural daylight

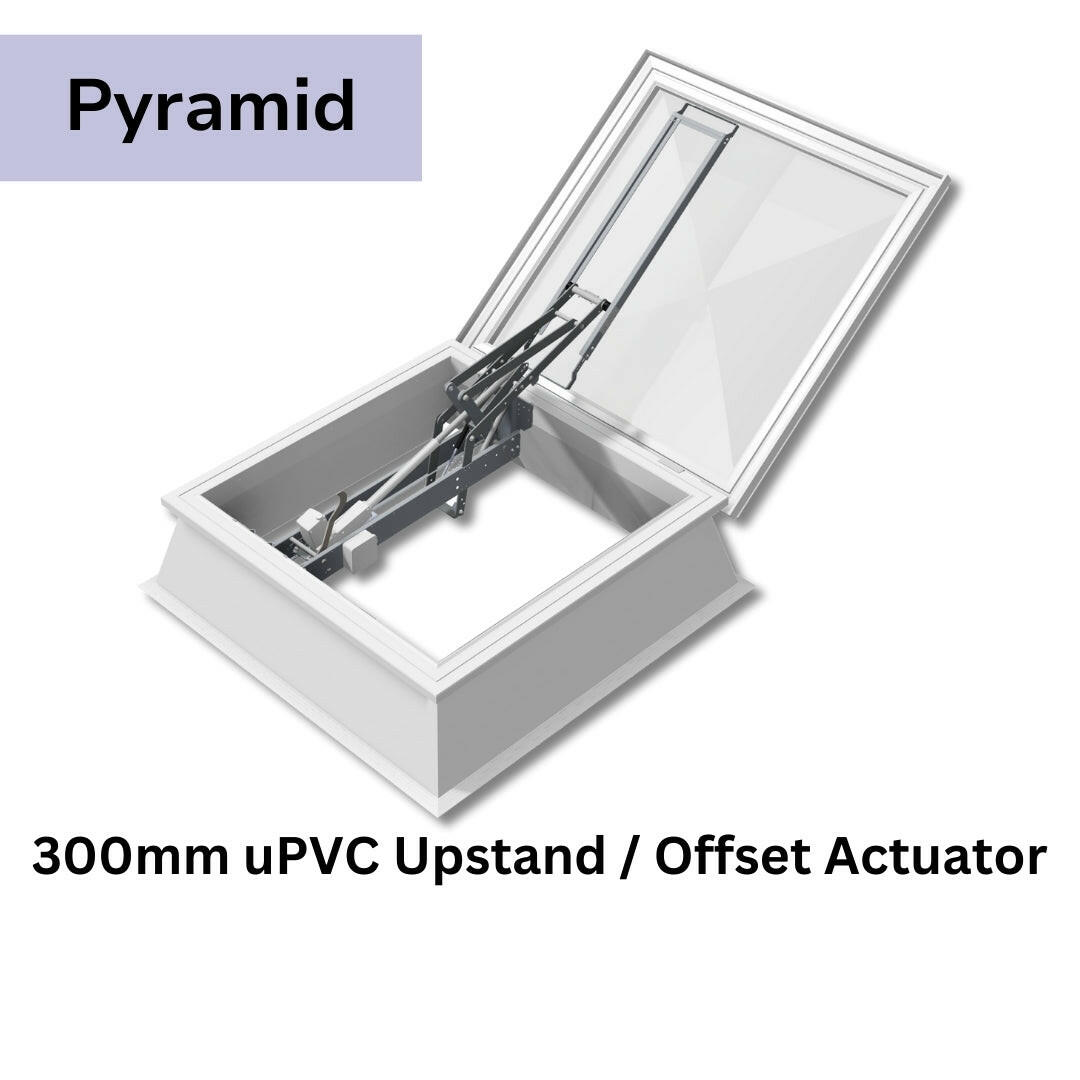

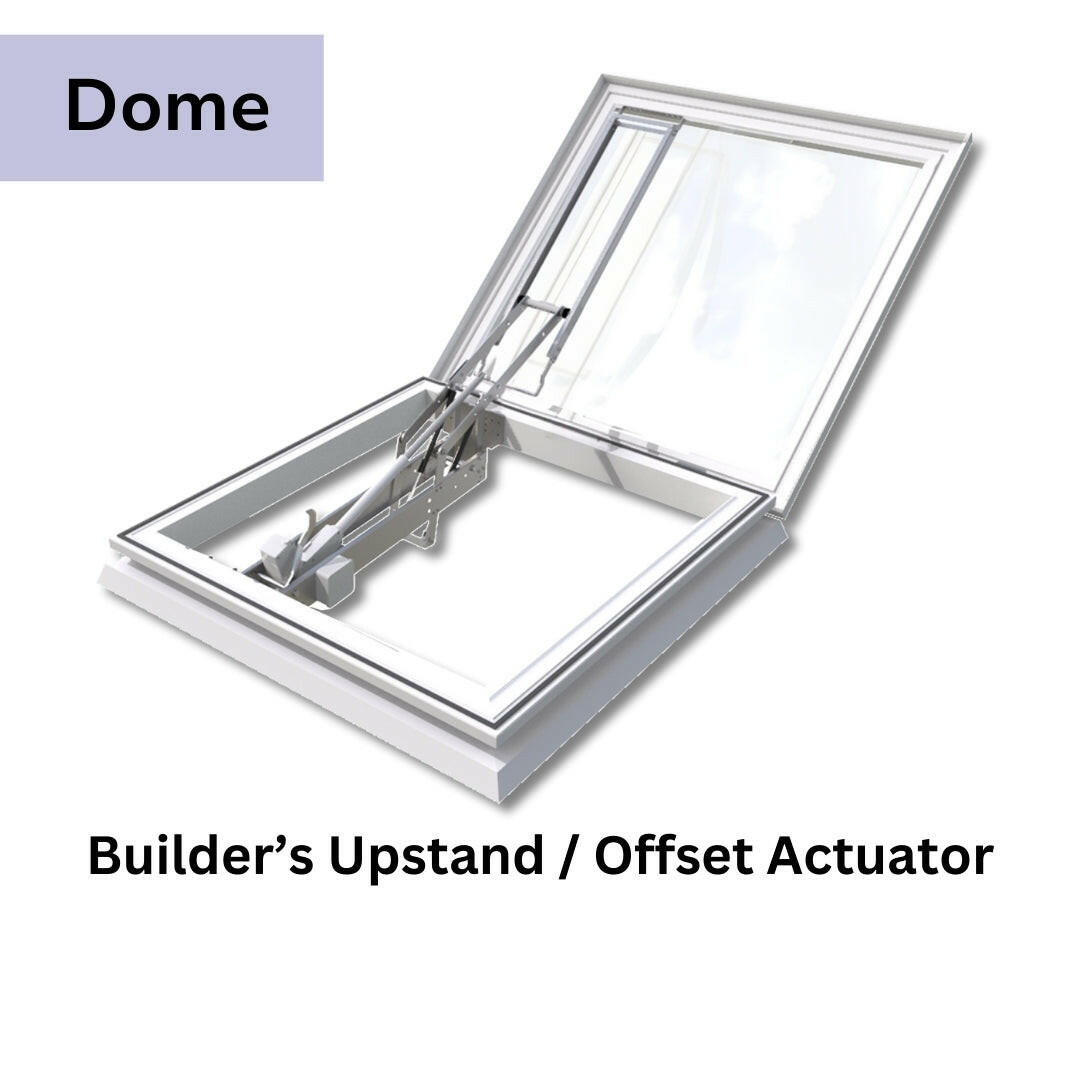

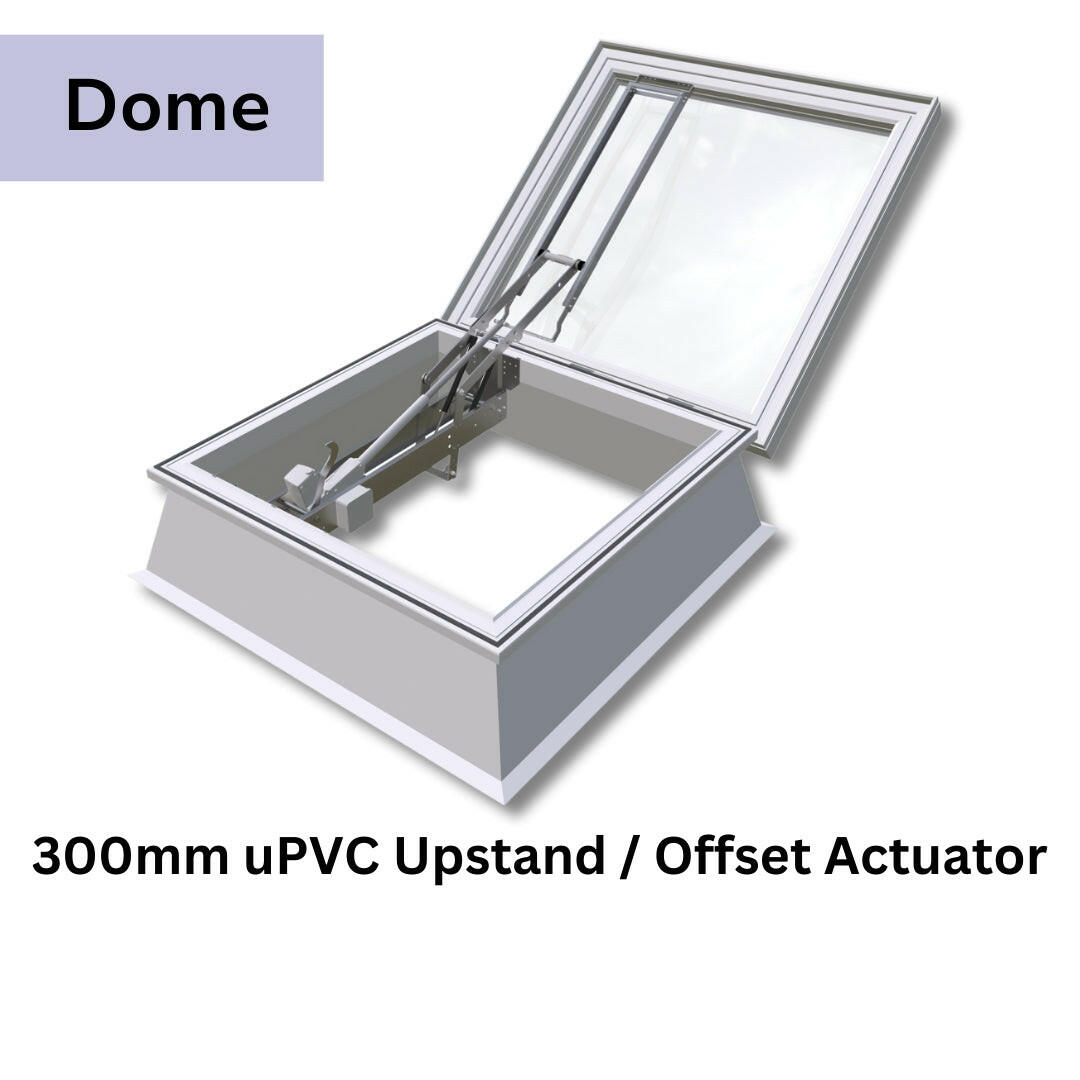

• Optional offset actuator for access hatch functionality

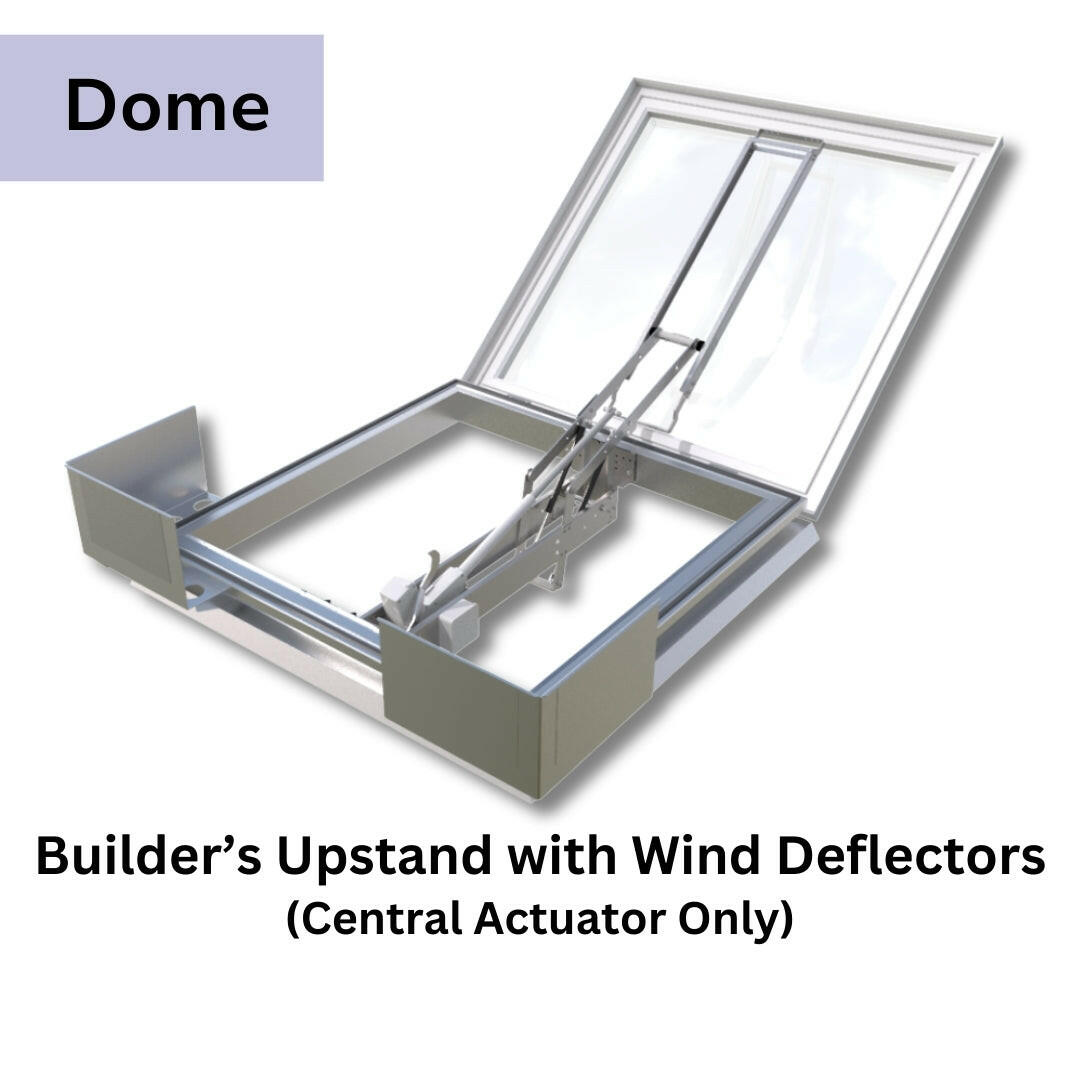

• Optional wind deflectors to improve aerodynamic ventilation performance

Mardome Smoke Vent Rooflights combine the best of natural smoke ventilation, roof access solutions, and building safety compliance into a single, high-performance product.

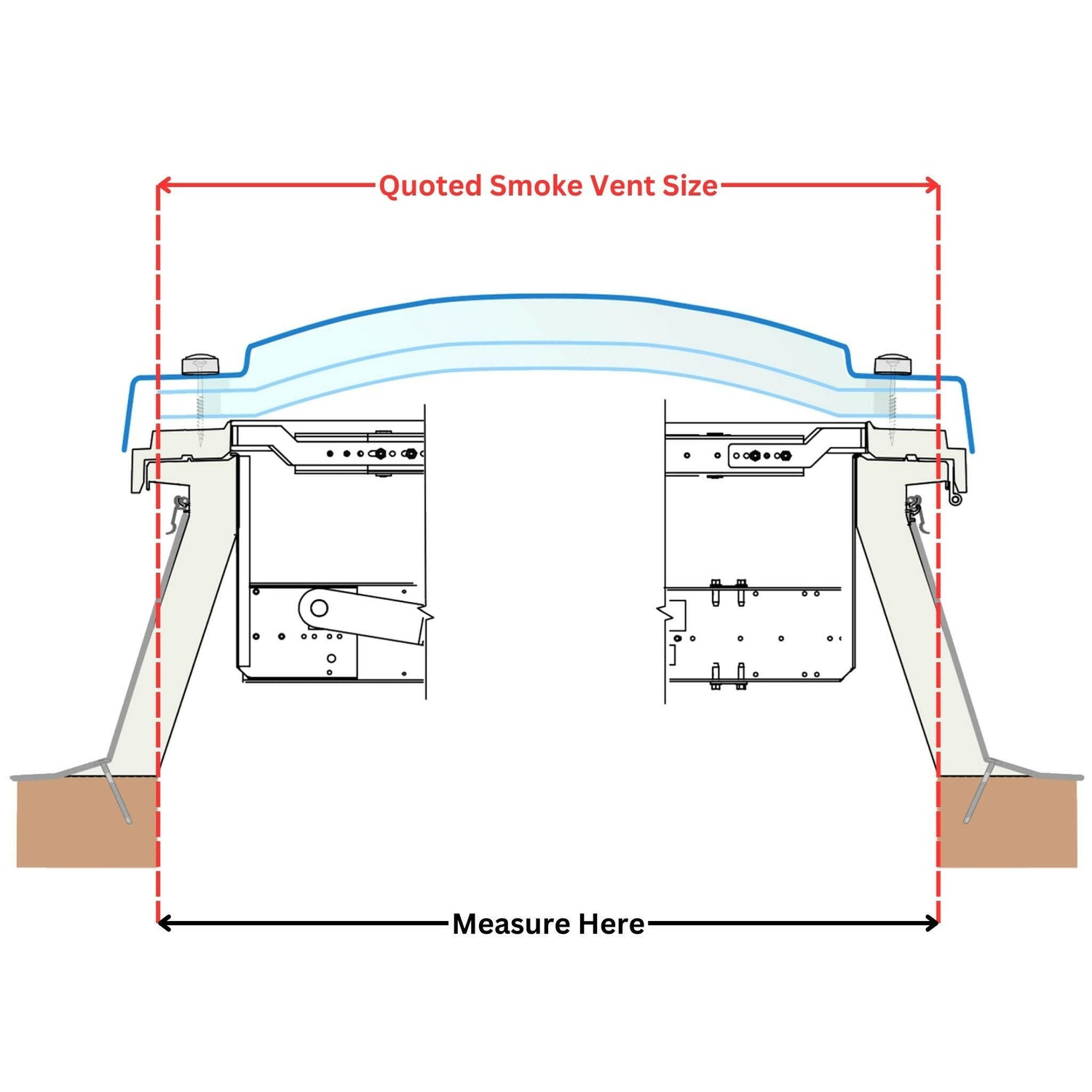

Please note that all Brett Martin Smoke Vent Rooflights are made to order and therefore non-returnable, so be sure to confirm your specifications and measurements before finalising your purchase.

Download Technical Datasheet

Performance:

• Equipped with a factory-fitted 24V electrical actuator, capable of opening up to 140 degrees in under 60 seconds for quick smoke and heat exhaust.
• Provides both smoke and comfort ventilation, offering versatility for various building requirements.
• Suitable for flat roof applications with a pitch range of 0°-15°.

Appearance:

• The clean, white interior surfaces feature a central or offset internal actuator, blending seamlessly with interior aesthetics.

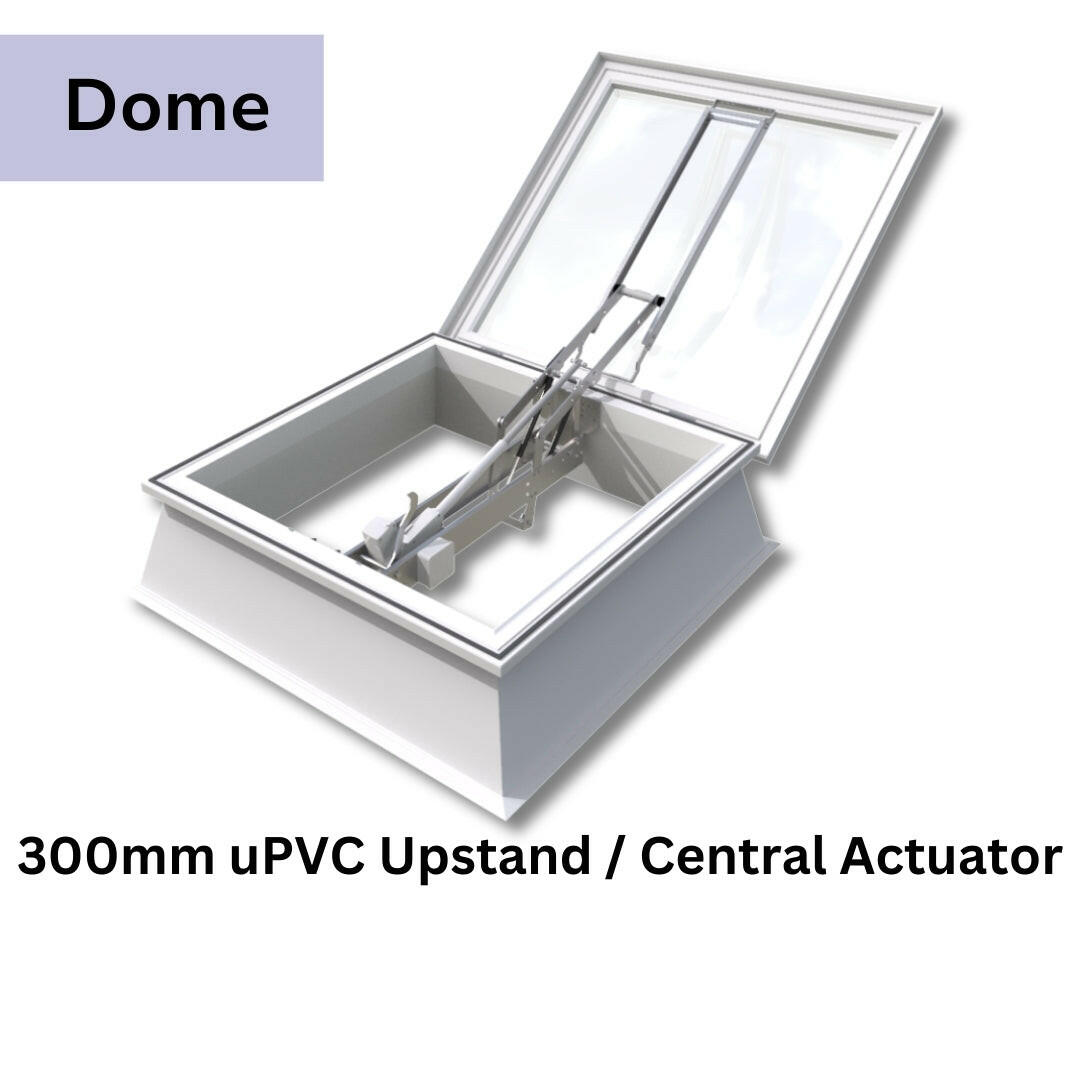

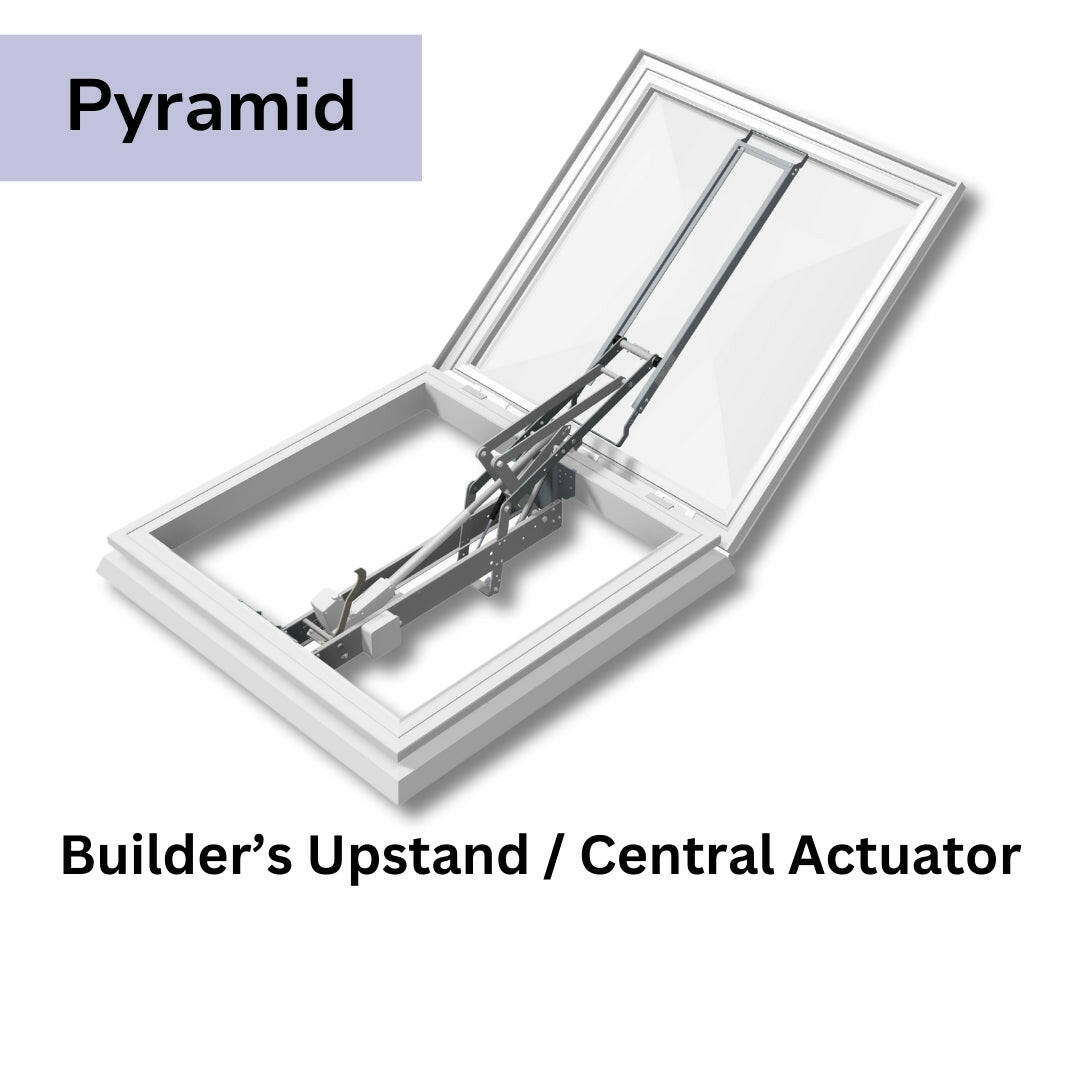

• The low-rise profile (available in dome and pyramid options) enhances the building's exterior appearance while optimising natural light clarity.

Composition:

• Outer dome constructed from 3mm impact-resistant Marlon FSX polycarbonate with UV protective coating on both sides.
• Inner domes available in 2mm impact-resistant Marlon FS polycarbonate sheeting for double or triple skin options, improving thermal performance.
• Kerb and hinge frames made from lead- and cadmium-free un-plasticized PVC, ensuring environmental safety and durability.

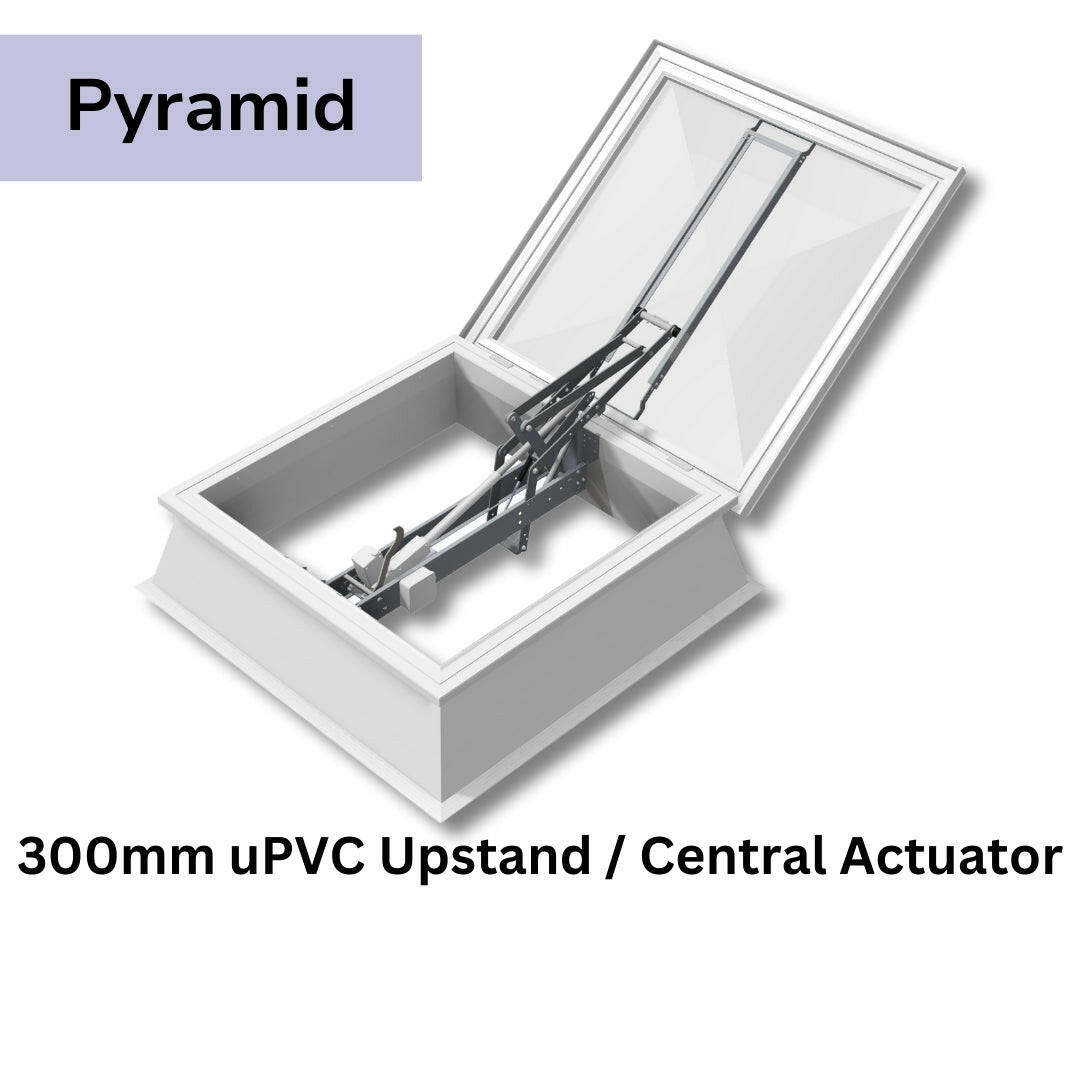

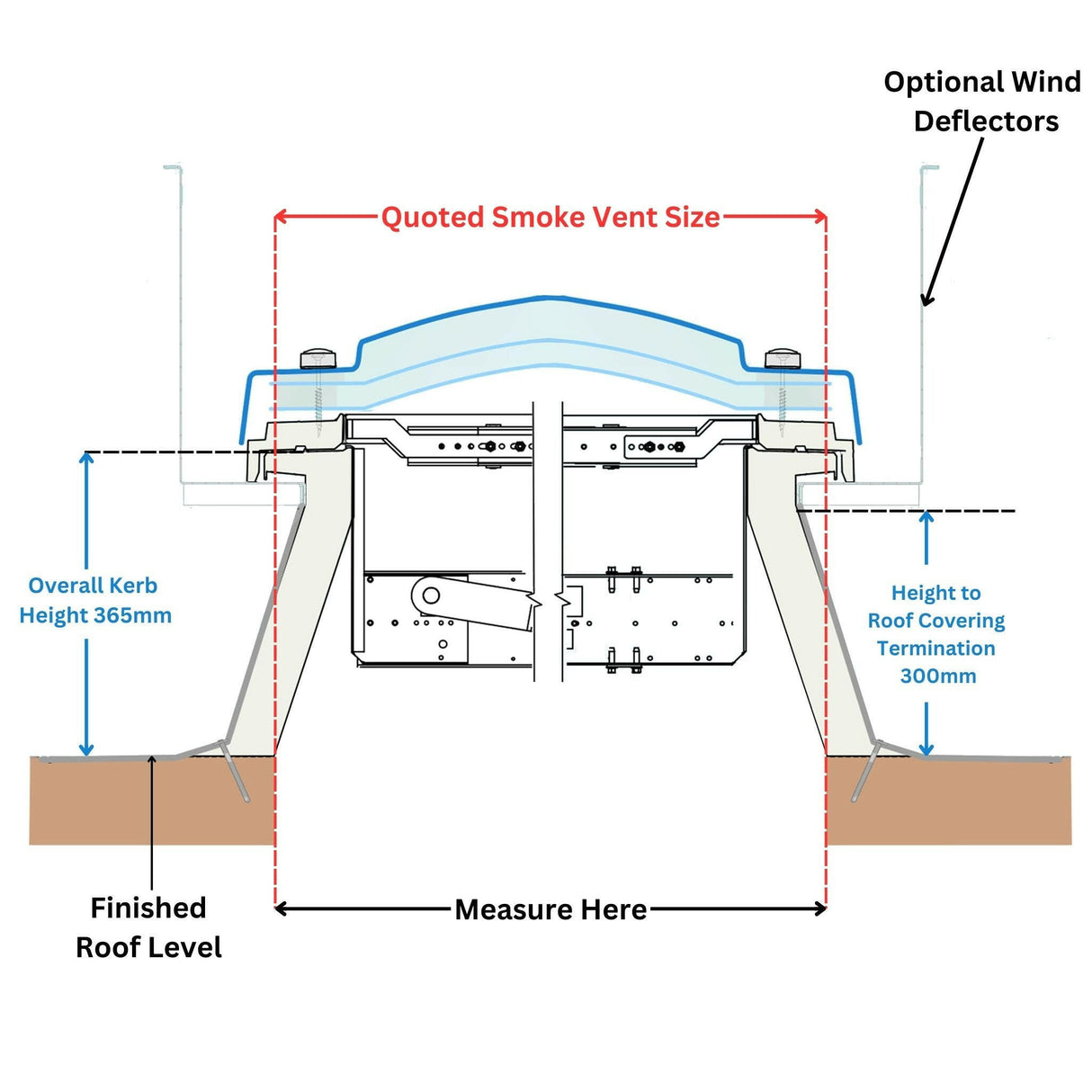

• The 300mm sloped kerb is lined with white-finished sheet metal for a polished look, with internal framework featuring a gloss white finish.

Glazing Options and Performance:

• Constant separation of glazing skins across the dome’s full width (including fixing flange) for triple skin options, preventing cold spots and minimizing condensation risk.
• Available glazing tints: Clear (high visibility), Opal (diffused light and solar control), and Patterned (privacy).
• Triple skin glazing ensures compliance with Part L thermal performance standards.

Glazing Performance (Based on Tint Selection):

• Clear Tint: High visibility with up to 85% light transmission (double skin) and 78% (triple skin).
• Opal Tint: Provides solar control and diffused light with light transmission of 35% (double skin) and 32% (triple skin).
• Patterned Tint: Offers privacy with 78% (double skin) and 72% (triple skin) light transmission.

Acoustic Performance:

• Standard Double Skin Polycarbonate: 20 dB (Airborne Sound Index, Rw)
• Standard Triple Skin Polycarbonate: 22 dB (Airborne Sound Index, Rw)
• Rain Noise Penetration (LiA): 61.8 dB for Triple Skin Polycarbonate

Optional Accessories:

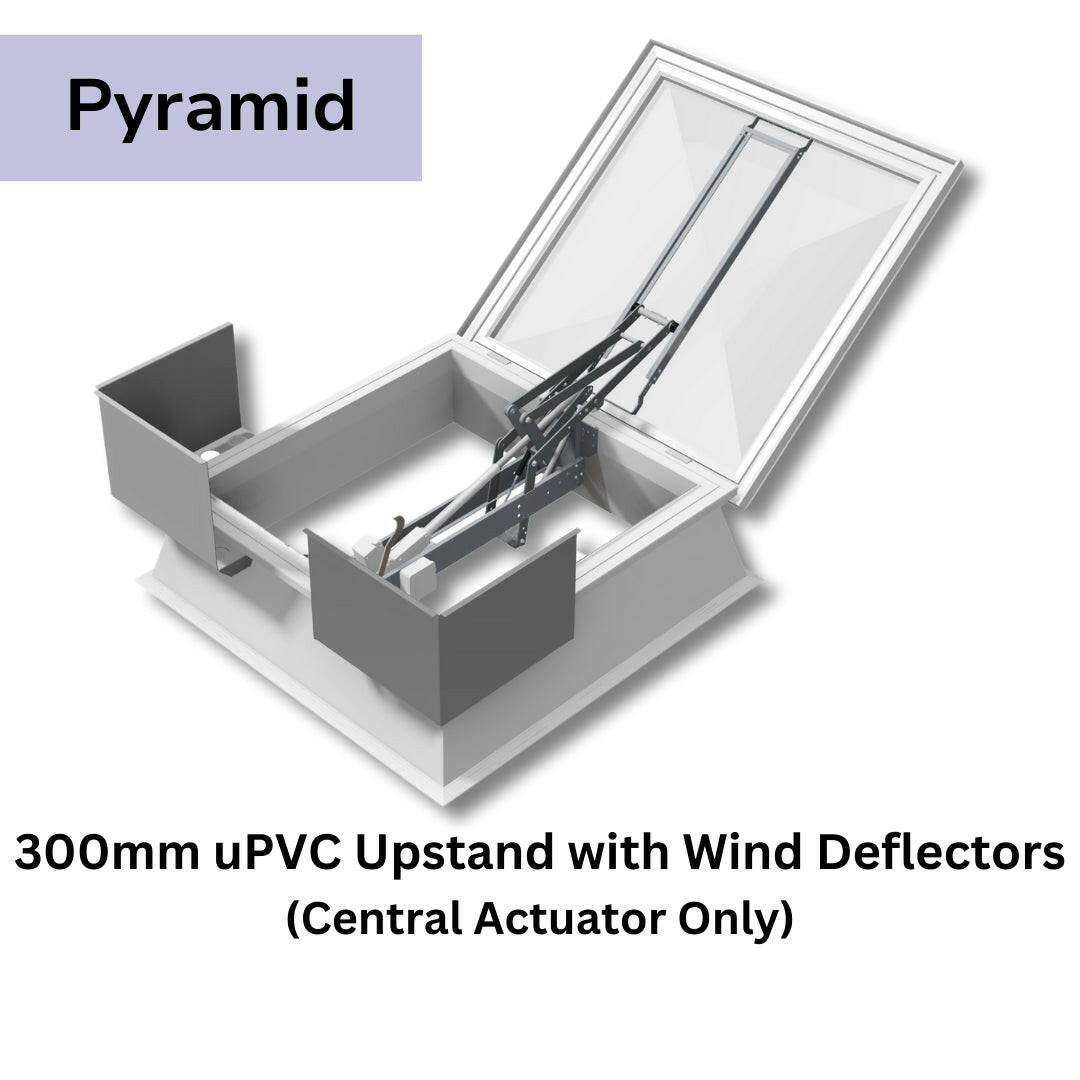

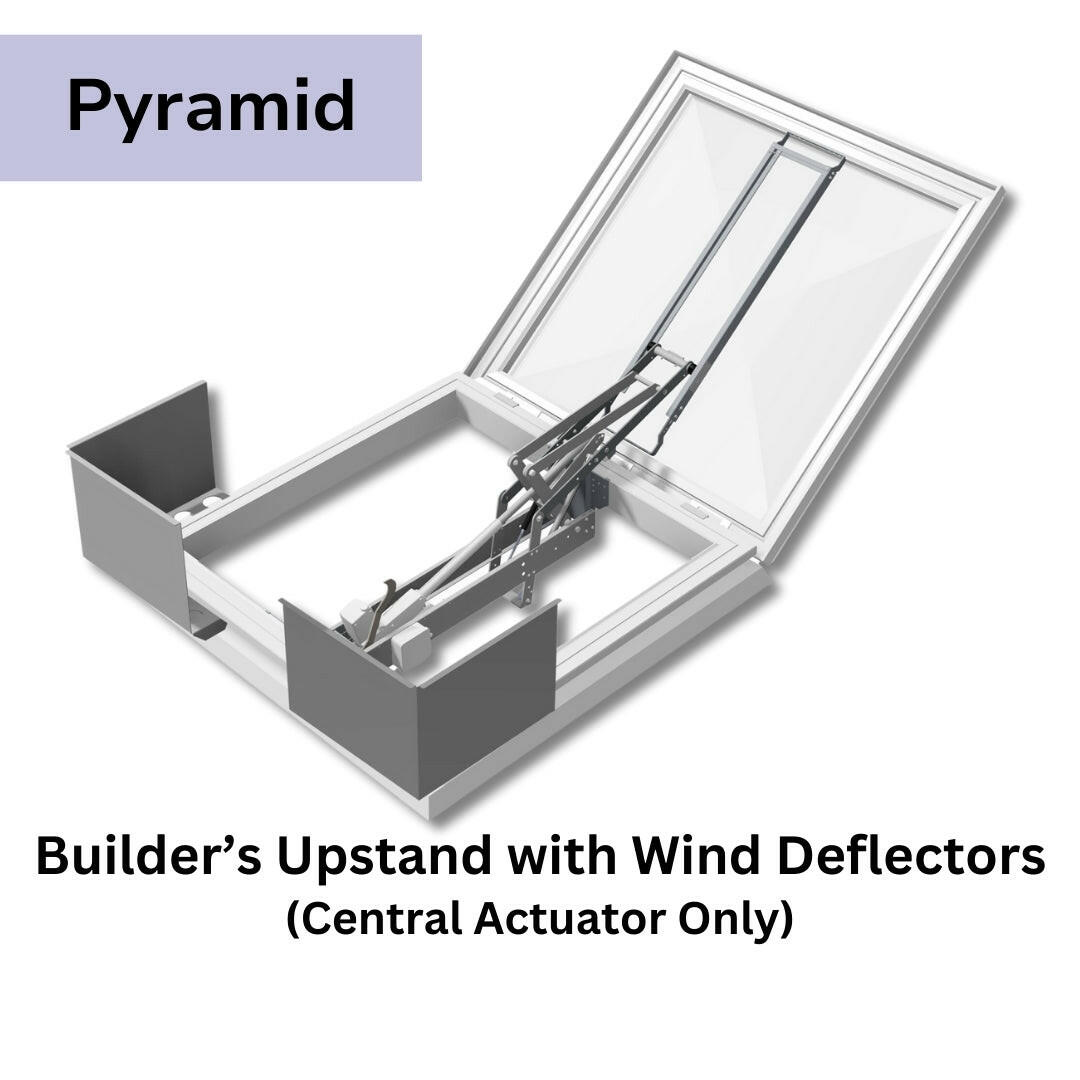

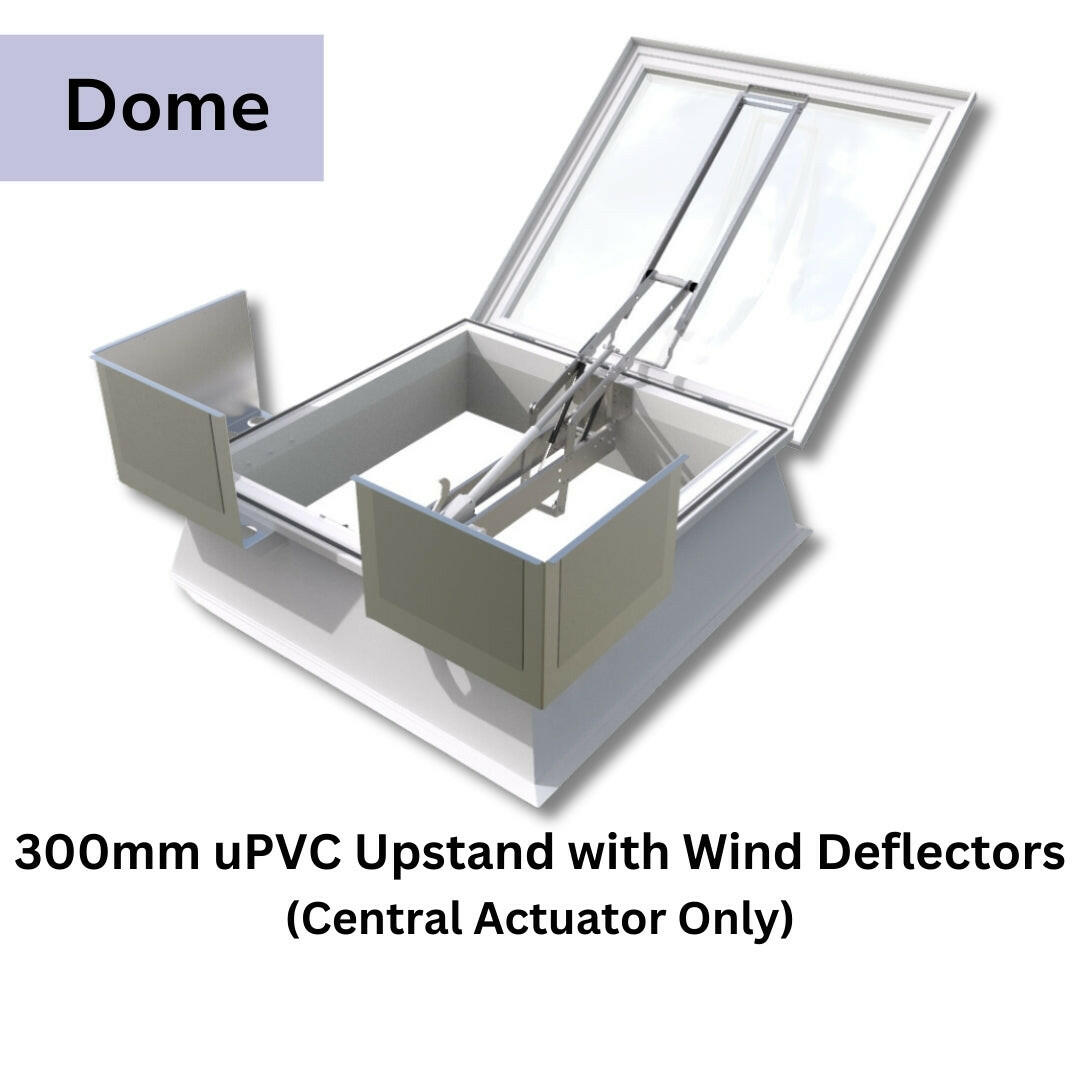

• Wind Deflectors: Enhance aerodynamic performance and improve the natural ventilation area.
• Control Panel System: EN12101-10:2005 approved, available in 5A and 8A models with a built-in comfort switch.
• Fire Switch (IP40): Activates the smoke vent and alarm system, featuring a breakable glass mechanism for emergency use.
• Fireman’s Priority Switch (IP40): Allows manual opening and closing of the smoke vent without affecting the alarm system.
• Smoke Detector: Detects fire early, with a visual ‘release’ display, available in white as standard.

Design and Certification:

• Fully tested and certified in accordance with EN12101-2:2003 standards, ensuring compliance with European safety and quality regulations.

Mardome Smoke Vent Rooflights provide an all-in-one solution for effective smoke and comfort ventilation, with additional accessories to customise safety features for any building type.

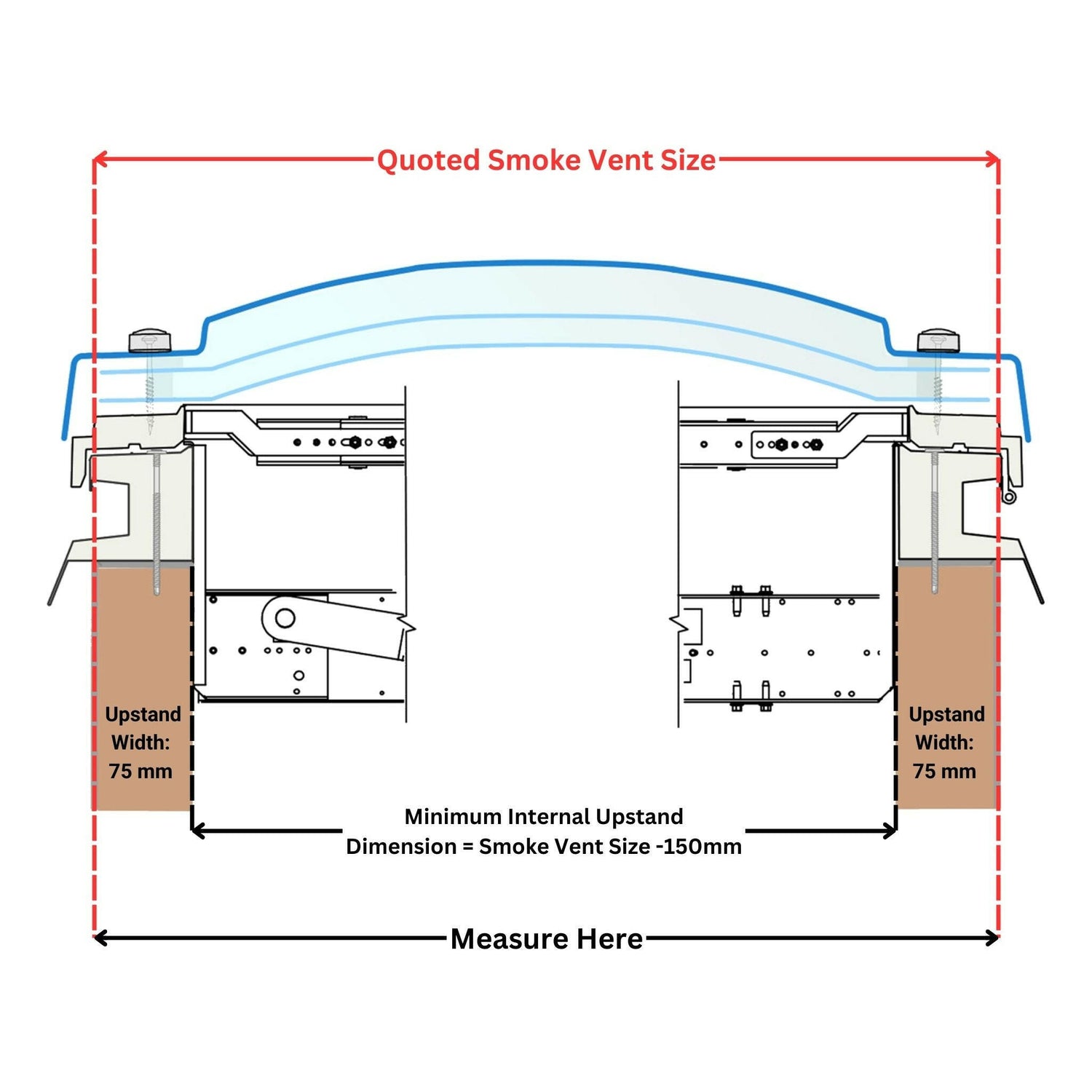

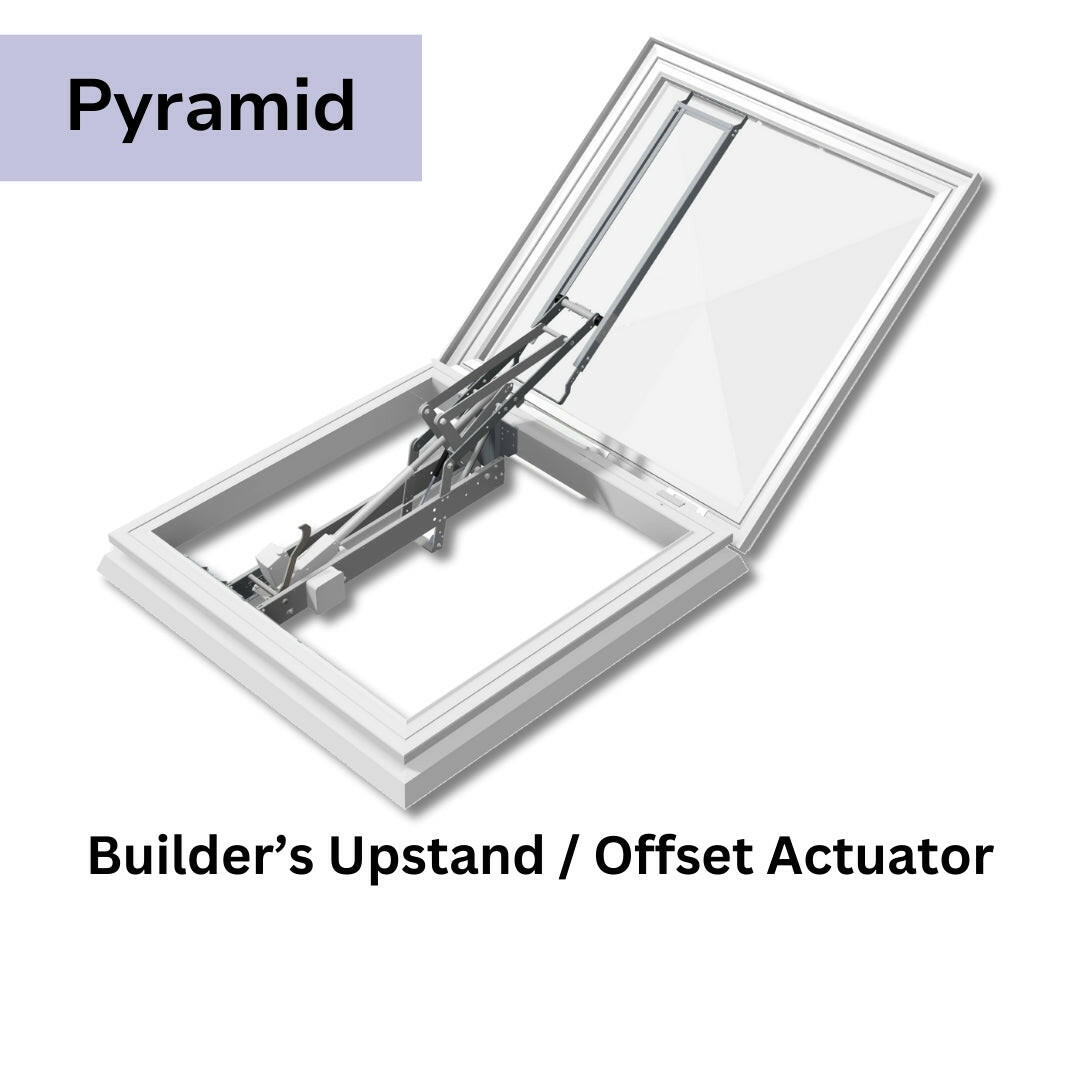

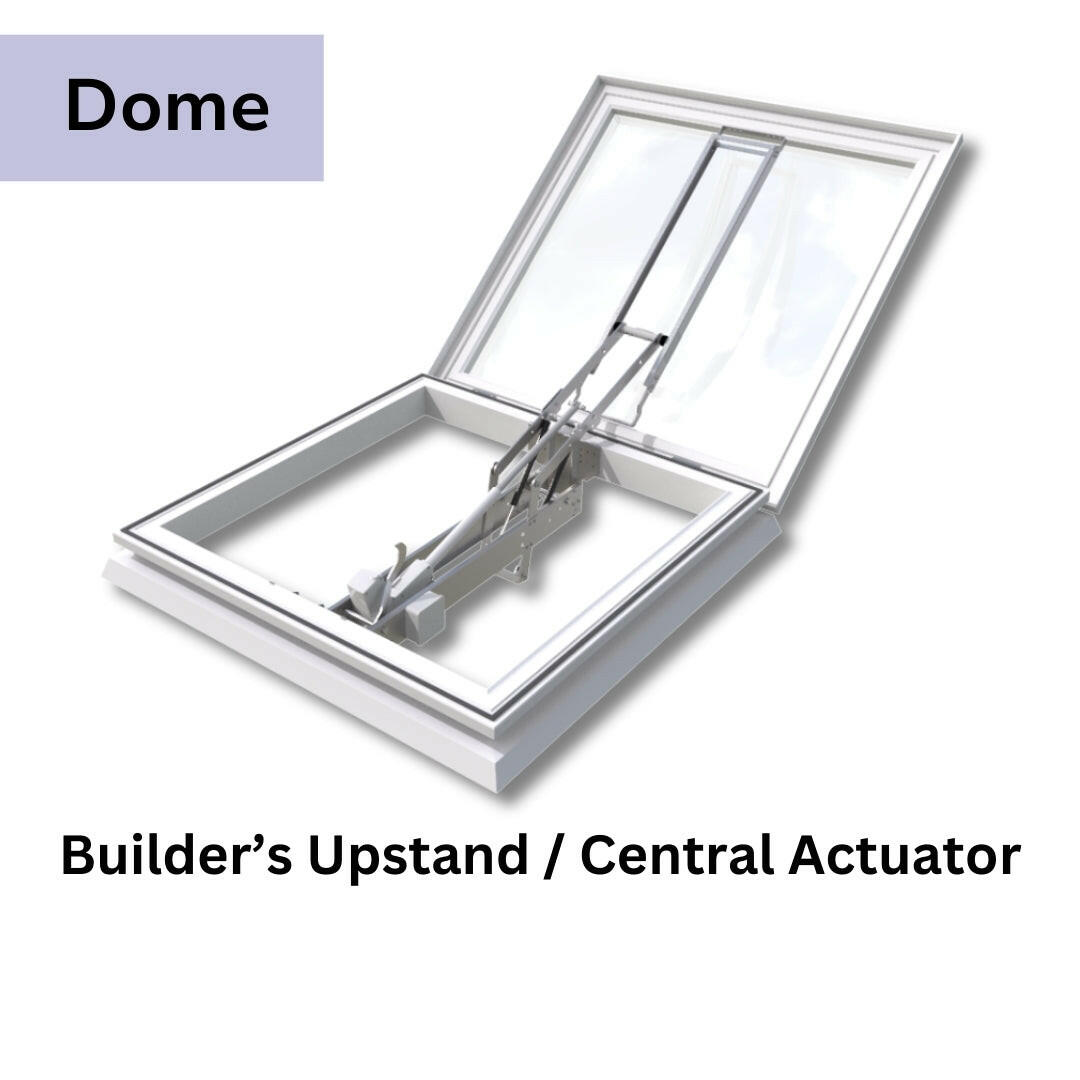

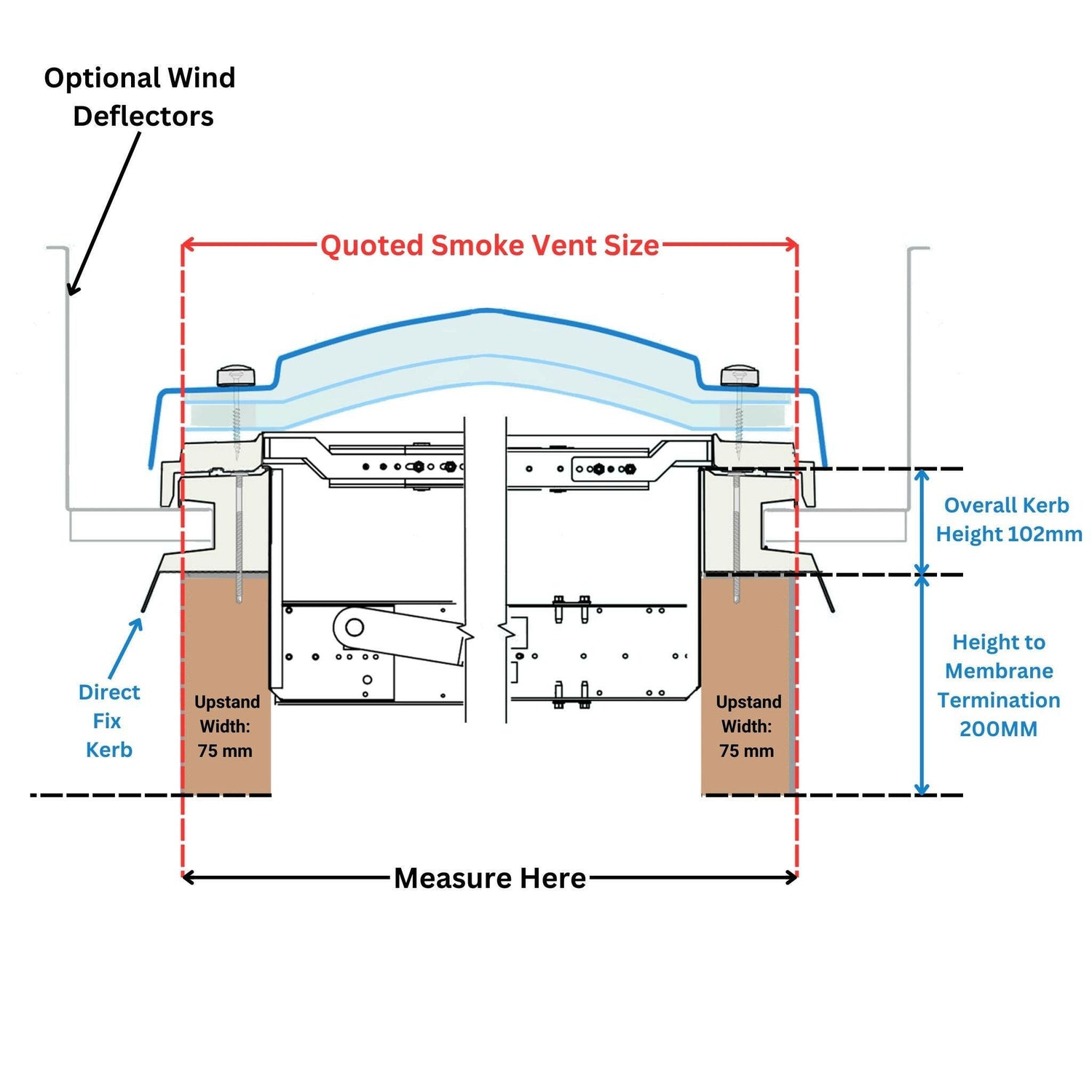

Smoke Vent on Builder's Upstand - Installation Video

Smoke Vent on a uPVC Upstand - Installation Video

Smoke Vent - Installation Guide

Safety Standards and CDM Compliance:
The Mardome Smoke Vent Rooflights are designed to meet Class B non-fragility according to ACR[M]001 standards when installed following the provided installation guide. While the rooflights are robust, it is important to avoid walking on them, as any foot traffic or significant impact, such as a person falling onto the rooflight, can lead to potential damage and may require full replacement for safety assurance.

Security Features:
The security of Mardome Smoke Vent Rooflights is enhanced by the unique design, which conceals all individual fixings beneath security caps, making them difficult to access or tamper with. The polycarbonate material used in the construction is highly impact-resistant, providing additional protection against breakage, which increases the security of the building where they are installed.

Fire Safety and Compliance:
Mardome Smoke Vent Rooflights comply with Building Regulations Approved Document B: Fire Safety and have been tested in accordance with EN 13501-1. These rooflights achieve a B-s1,d0 fire rating, which indicates minimal smoke production and no flaming droplets in a fire scenario. Additionally, they meet the requirements for a BROOF(t4) classification, allowing them to be used at any distance from boundaries without restrictions on external fire spread.

Internal Fire Spread Guidelines:

• Residential Buildings (Volume 1): Rooflights with a B-s3,d2 classification are suitable for small rooms up to 4m² and garages up to 40m².
• Non-residential Buildings (Volume 2): Rooflights can be installed in circulation areas, small rooms up to 30m², and larger spaces, depending on the building’s specifications.

External Fire Spread:
The BROOF(t4) classification enables Mardome Smoke Vent Rooflights to comply with external fire spread regulations, allowing for their installation regardless of the building’s proximity to boundaries.

However, it is important to note that these rooflights are not fire-resistant and are not appropriate for use in scenarios where BS 476 part 22 fire resistance performance is required.

The Mardome Smoke Vent Rooflights provide a reliable combination of safety and security, making them a suitable choice for both residential and commercial applications that require effective smoke control and fire safety features.

Product Safety & Handling Information

Smoke Vent Rooflights by Mardome are designed to perform reliably in standard industrial environments, offering long-lasting durability. Each Mardome Smoke Vent is expected to remain fully functional for a period of 20 years, provided it is installed and maintained under normal conditions. To support this, a comprehensive 10-year warranty is offered, ensuring peace of mind and product confidence.

The warranty covers the following:

• Polycarbonate Rooflights: The polycarbonate material used in Mardome Smoke Vents is protected against significant loss of light transmission, discoloration, or reduction in impact strength for 10 years from the date of installation.
• Weather-tightness and Structural Integrity: Mardome Smoke Vents are guaranteed not to become perforated or suffer from structural distortion that would compromise their weather-tightness for 10 years under normal usage conditions.
• Electrical Actuators: Where fitted, the electrical actuators are covered by a 1-year warranty, ensuring they perform without failure for this period. Each actuator is designed for a minimum of 10,000 operational cycles.

This warranty ensures that Mardome Smoke Vent Rooflights maintain their high standards of performance, reliability, and safety, providing long-term assurance for building owners and users.
