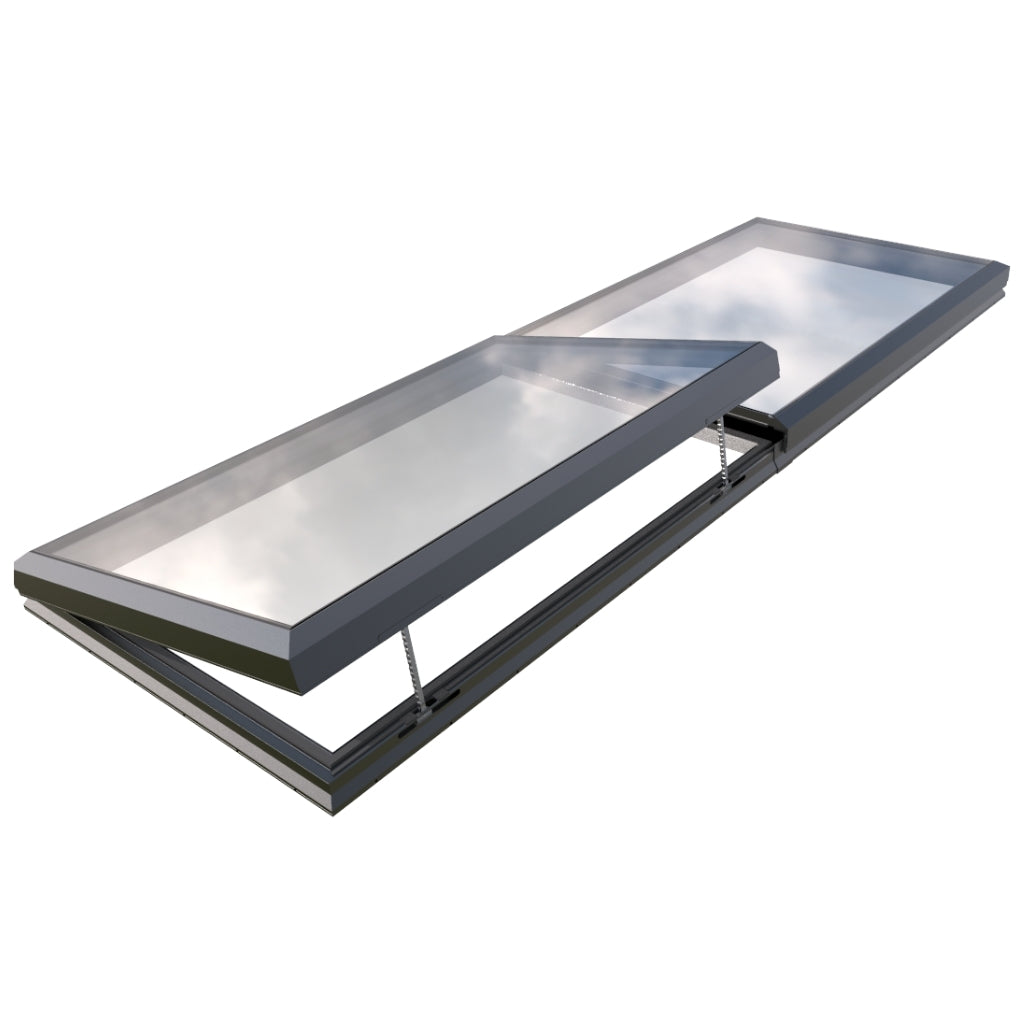

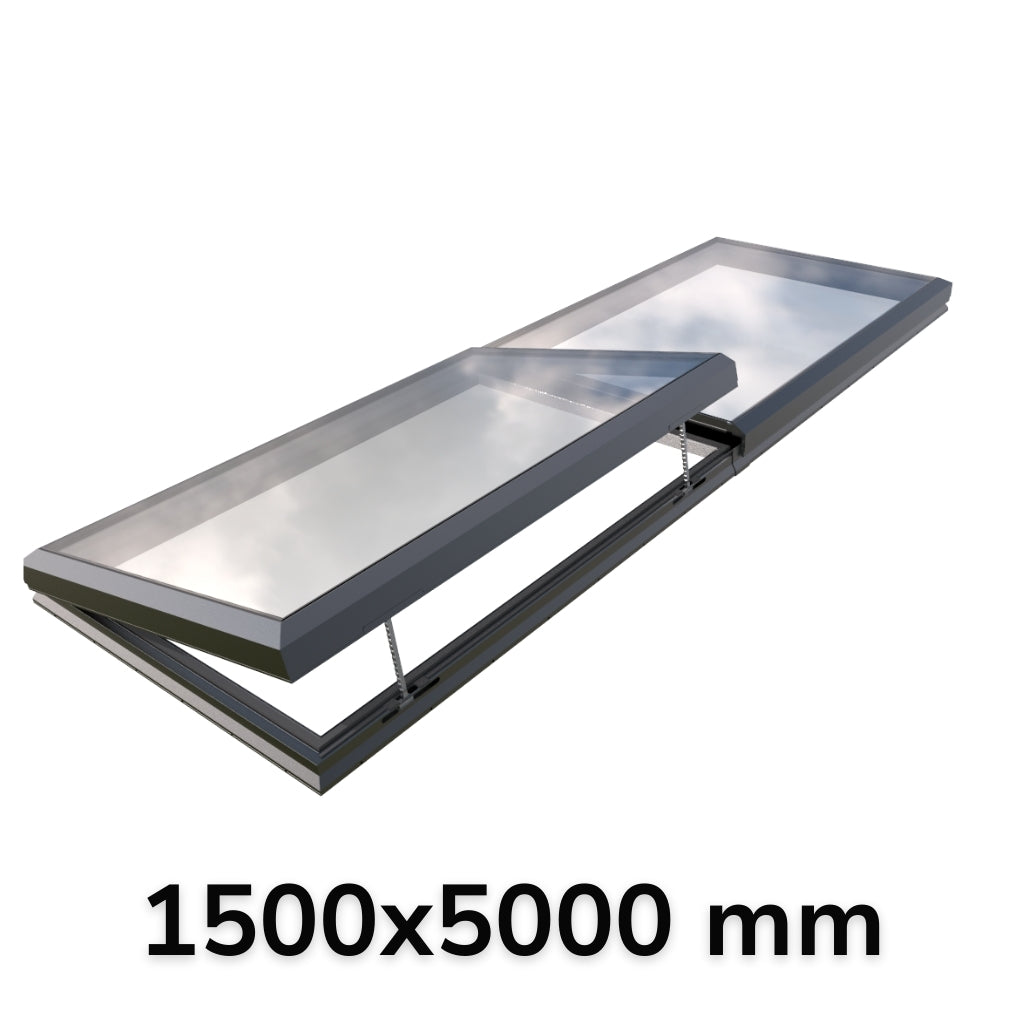

1500 x 5000 mm Electric Opening Glass Link Modular Skylight (1 Fixed 1 Opening)
Key Benefits and Standout Features
Key Benefits and Standout Features
- Adaptable Installation: Designed to fit roof pitches from 2° to 35° for versatile use and a modern look.
- Automated Opening : Features an electric system with optional remote control and rain sensor.
- Superior Energy Efficiency: Thermally broken frame and Low-E double glazing minimise heat loss.
- Robust, Modern Design: Durable powder-coated aluminium frame in Anthracite Grey (exterior) and White (interior).
Description
Description

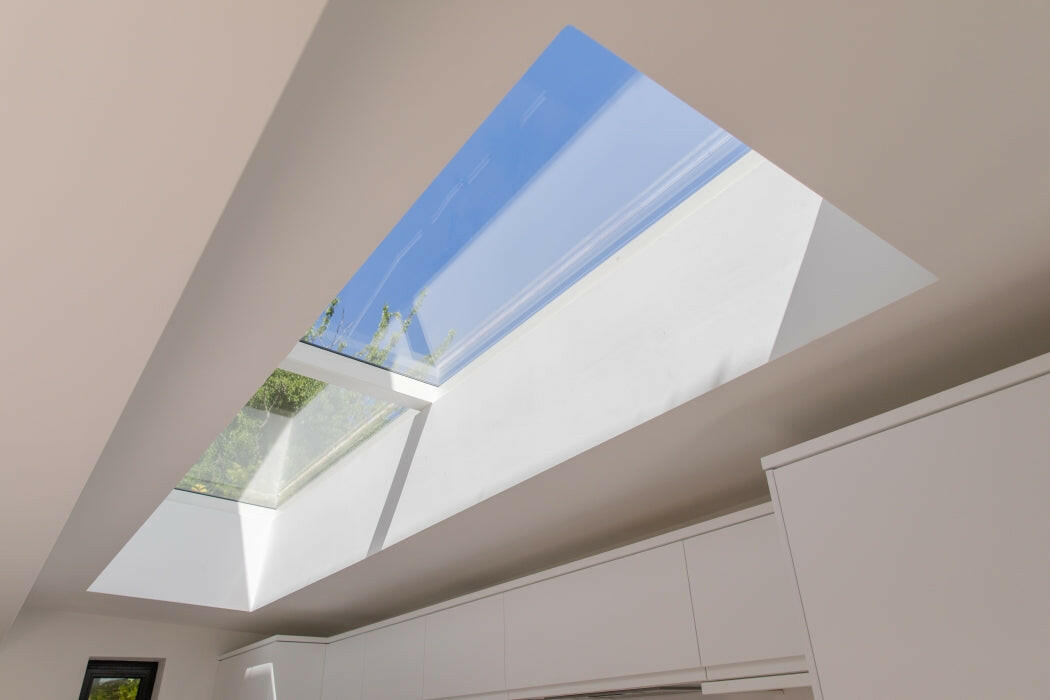

The Glass Link Electric Opening Modular Skylight enhances modern spaces by providing natural light and automated ventilation. Designed for large, linear areas, it introduces daylight while allowing fresh air to circulate, improving indoor comfort and creating a bright, airy environment.
Why Choose Glass Link Electric Skylights?
- Ventilation at the Touch of a Button – Electric opening modules offer natural airflow and can be controlled via wall switch, remote, or integrated rain sensors for ultimate convenience.
- Unobstructed Design – The flush finish and concealed actuators ensure that the opening modules maintain a clean, streamlined appearance.
- Smart Automation – Optional control panels enable synchronised operation of multiple skylights, with automated closing during rain.
- Enhanced Daylight and Airflow – Maximise daylight with large glazed areas while improving air quality and overall comfort.
- Effortless Installation – Pre-glazed modules lap together seamlessly, ensuring quick installation without the need for additional flashings or on-site glazing sealants.
- Thermal Efficiency – A fully thermally broken aluminium frame, combined with Low-E double-glazed glass, boosts insulation and energy performance.
- Reliable Safety and Security – Laminated inner panes meet CWCT TN-67 (Class 2) and ACR[M]001 Class B standards, ensuring safety for those inside and around the skylight.
Experience enhanced ventilation and superior aesthetics with the Glass Link Electric Opening Modular Skylight – designed to brighten and refresh your space effortlessly.
Specifications
Specifications
Design and Build
- Pre-assembled modules for fast
and simple installation. - Modular system allows for
skylights of extended lengths by connecting multiple units. - Flush design ensures a seamless,
modern appearance, even for opening sections. - Concealed actuators and internal
components maintain an unobstructed light well. - Dual colour aluminium frame,
powder-coated in Anthracite Grey (RAL 7016) externally and White (RAL 9010)
internally. - Thermally broken aluminium frame
ensures maximum energy efficiency.
Operation and Control
- Electric opening powered by a
concealed chain actuator. - Operated via wall switch as
standard. - Optional remote control for
convenient operation. - Optional rain sensor for
automated closing during adverse weather. - Control panels available for
simultaneous operation of multiple modules.
Installation and Compatibility

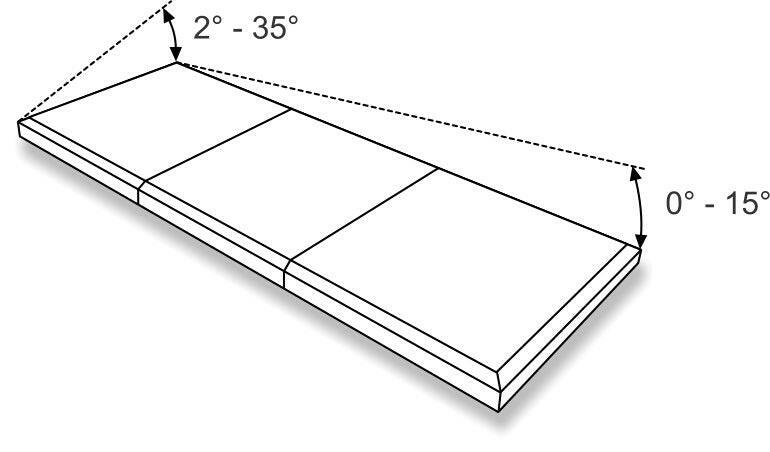

- Suitable for roof pitches between
2° and 35° across the span and 15° along the length. - Larger modules may require a
minimum pitch of up to 5° - Longitudinal pitch ranges from 0°
to 15° - Designed to promote effective
drainage and prevent water pooling.
Glazing Details
- 6mm toughened outer glass pane
for durability. - 16mm argon-filled spacer for
improved insulation. - 9.5mm laminated inner pane with
1.5mm PVB interlayer (increased to 11.5mm for larger panes). - Low-E glass coating for enhanced
energy efficiency.
Glazing Performance
- Light Transmission: 77% - 78%
- G-Value (Solar Gain): 0.56 - 0.57
- Reflectance: 12%
- Shading Coefficient: 0.64 - 0.65
Performance Standards
- Certified non-fragile to CWCT
TN-67 for Class 2 roofs. - Class B non-fragile rating to
ACR[M]001 - U-Value between 1.90 and 2.1
W/m²K - Acoustic rating of 39dB (Rw) for
effective sound insulation. - Wind load resistance up to 1200
N/m² - Snow load resistance up to 600
N/m²
Warranty and Certification
- 10-year commercial warranty for
lasting performance and peace of mind. - Manufactured to ISO 9001 and ISO
14001 quality and environmental standards.
Sustainability and Materials
- Thermally broken aluminium frame
ensures maximum energy efficiency. - Constructed with recyclable
materials, including aluminium, glass, ABS, and PVC. - BRE Verified Environmental
Product Declaration (EPD) for environmentally conscious projects.
Installation Guide
Installation Guide
Safety and Certification
Safety and Certification
Safety Requirements and Construction Design Management (CDM)
- Non-Fragility: Glass Link modules comply with CWCT TN-67 for non-fragility in class-2 roofs and ACR[M]001 class B non-fragility when new and properly installed according to Brett Martin Daylight Systems' installation guidelines.
- Protection for Occupants: The inner glass pane is laminated to protect individuals inside buildings, adhering to Rooflight Association (formerly NARM) NTD14 industry guidelines.
- Precautions: It is crucial to avoid foot traffic on rooflights. Impacts such as foot traffic or falling persons may damage the rooflights, possibly requiring replacement.
- Compliance Standards: All glass panels meet the standards set by BS EN12150, BS 14449, and BS 1279, ensuring high quality and safety.
Security

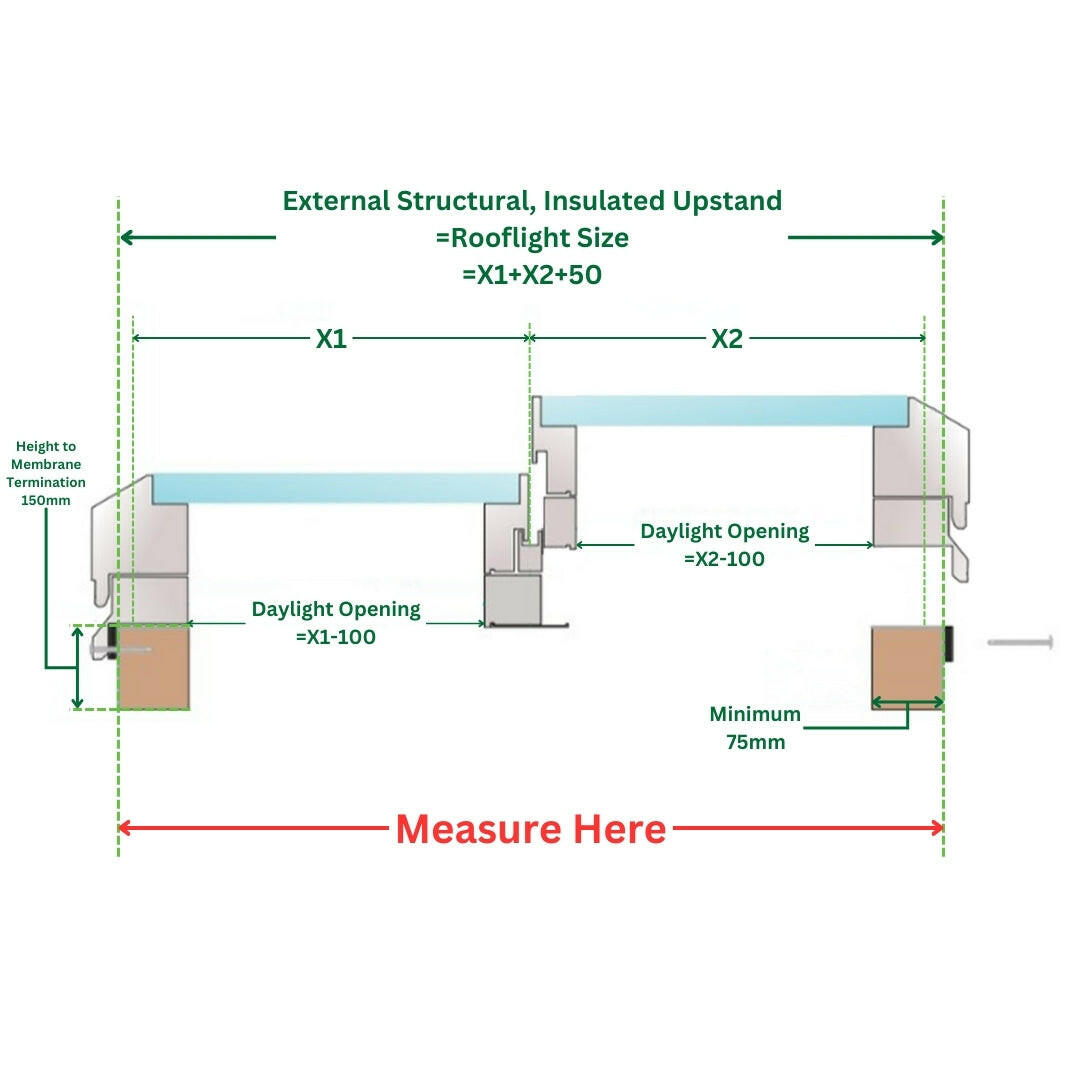

- Installation and Fixings: Each product is installed on a structural, insulated builder's upstand using self-drilling, anti-tamper security fixings to enhance security.
Fire Performance
- Fire Resistance: Glass used in these rooflights is designated as Class A according to EN13501 part 1 and is listed among CWFT (classified without further test) materials, as published in the Official Journal of the EU (European Commission Decision 96/603/EC).
- Building Regulations Compliance: The rooflights feature a 6mm toughened outer pane, ensuring a BROOF(t4) classification in line with building regulations, which pertains to the external spread of flame and heat penetration.
Wind and Snow Load Resistance
- Wind Load Resistance: These modules resist wind loads up to 1200 N/m², adhering to the requirements specified in BS EN 1991-1-4: 2005. This standard assesses the general actions on structures caused by wind, ensuring that the modules maintain structural integrity under typical wind conditions.
- Snow Load Resistance: They are also designed to withstand snow loads of up to 600 N/m², as specified by BS EN 1873: 2005. This standard pertains to the performance of non-accessible roof coverings under various imposed loads, including those caused by snow.
T&C's & Warranty
T&C's & Warranty
Structural Warranty: Glass Link Rooflights are guaranteed to remain fit for purpose under normal industrial conditions for 20 years with a 10-year warranty against becoming perforated, losing significant structural integrity, or distorting to the extent of losing weather-tightness.
Electrical Actuators Warranty: Electrical actuators are covered for 1 year and are designed to last for at least 10,000 cycles.
Insulated Glass Warranty: Insulated glass used in the construction of the rooflights is warranted for 5 years.
If you find any cracks in the glass upon delivery, please contact us right away. To be eligible for a return or replacement, it is important that any damage is reported within 12 hours of delivery. Promptly informing us of any issues ensures we can resolve them quickly and efficiently.
Delivery and Shipping
Delivery and Shipping
ECONOMY NATIONWIDE SHIPPING: 10-15 Working Days
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Advanced Design and Functionality
Modern Aesthetic: Sleek, minimal framing with a flush finish provides a contemporary appearance, seamlessly integrating with modern architectural styles.
Dynamic Dual-Tone Frames: Externally finished in Anthracite Grey and internally in White, these frames offer an aesthetically pleasing contrast that complements cutting-edge designs.
Optimal Light and Ventilation: Large glazed areas paired with electrically operated opening mechanisms enhance both natural lighting and air circulation, promoting a healthier indoor environment.
High-Performance and Safety
Superior Energy Management: Featuring thermally broken aluminium frames and Low-E double-glazed glass to maximise thermal efficiency and minimise energy loss.
Automated Opening System: Equipped with electric actuators for effortless operation via wall switch, with options for remote control and rain sensors for automated response to weather changes.
Robust Safety Features: Safety is paramount with laminated inner panes that comply with CWCT TN-67 and ACRMMM001 Class B non-fragility standards, ensuring protection against impacts.
Seamless Installation and Customisation
Simplified Setup: Pre-assembled, factory-glazed modules quickly lap together, streamlining installation processes for both new constructions and refurbishments.
Flexible Installation Options: Designed to accommodate roof pitches from 2° to 35°, these skylights fit perfectly into a variety of roof configurations and ensure proper drainage and functionality.
Intelligent Weather Adaptation: Includes optional rain sensors that automatically close the skylights during inclement weather, enhancing convenience and protecting interior spaces.
